Design it yourself. Priced in seconds.
Design your UFH system yourself in 3 minutes with MaxHeatUFH ProLoop and get an instant quick design and quote. Tap a step to jump the video there.
What installers order most
The parts that go out on nearly every job. Order by 12pm for next working day delivery.
See all best sellers →-
1
MaxHeatUFH Electric Underfloor Heating Mat 150W/m², 10.0m²MaxHeatUFH · Get it next working day
£224 inc VAT
-
2
MaxHeatDeck Cement-Faced Routed XPS Board (1200 x 600mm)MaxHeatUFH · Get it next working day
£15 inc VAT
-
3
UFH Manifold Blending Valve Pump Pack 20 to 55°C with Bastion A-Rated 6m PumpBastion · Get it next working day
£201 inc VAT
-
4
ESBE Single Room UFH Mixing Pump Pack with Grundfos UPM3 AutoGrundfos · Get it next working day
£266 inc VAT
-
5
Tuskbond FD170 Spray Contact Adhesive 500mlTuskbond · Get it next working day
£8 inc VAT
-
6
MaxHeatUFH Electric Underfloor Heating Mat 100W/m²MaxHeatUFH · Get it next working day
From £39 inc VAT
-
7
ESBE Single Room UFH Mixing Pump Pack with Bastion A-Rated 6m PumpBastion · Get it next working day
£201 inc VAT
-
8
3-Port Mid-Position Motorised Valve 22mmMaxHeatUFH · Get it next working day
£74 inc VAT
See the heat for yourself.
Move the camera around the room. Switch between radiators and underfloor heating to see where the warmth really goes.
Every floor has a system.
Castellated panel
Pipe is pushed between the studs of a castellated panel laid over the insulation, then covered with screed or self-levelling compound. Quick to lay at any spacing and the most efficient choice for heat pumps.
- 1Tiles
- 2Tile adhesive
- 3Screed
- 416mm pipe in castellated panel
- 5Foil-faced PIR insulation
- 6Concrete slab
- Added height
- Panel plus screed
- Best for
- New builds, extensions, heat pumps
MaxHeatFix Plus panel
An open-lattice castellated panel with toothed studs grips 16mm pipe at any spacing. Levelling compound or screed flows through the lattice for a solid, quick-responding floor.
- 1Floor finish
- 2Levelling compound or screed
- 316mm pipe in MaxHeatFix Plus panel
- 4Concrete slab or insulation
- Added height
- Panel plus compound or screed
- Best for
- New builds, extensions, heat pumps

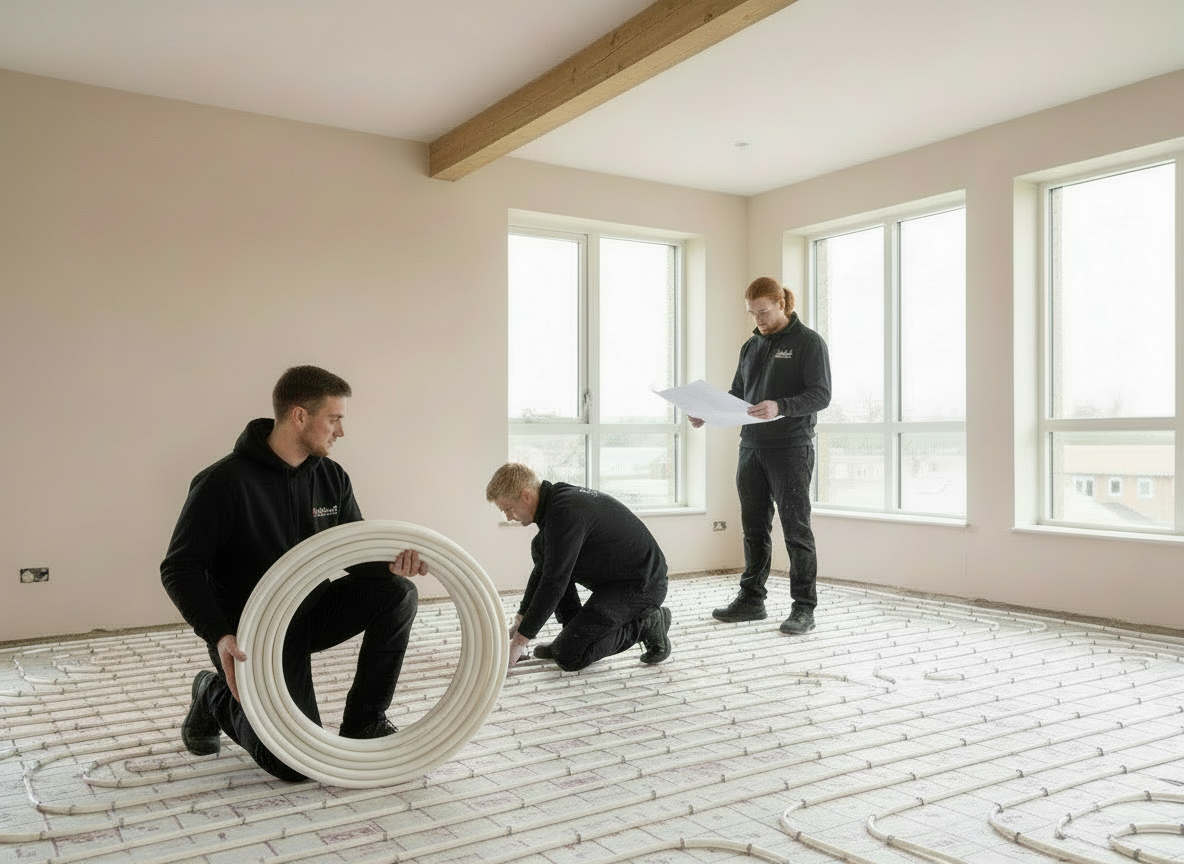

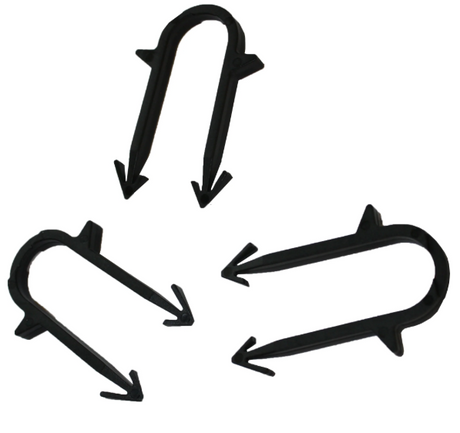

Tacker clips
Pipe is stapled to foil-faced insulation with barbed clips from a tacker gun, following the printed grid, with wide light-bulb bends at the ends, then covered with screed.
- 1Floor finish
- 2Screed
- 316mm pipe clipped to the insulation
- 4Foil-faced insulation with fixing grid
- 5Damp-proof membrane
- 6Concrete slab
- Added height
- Insulation plus screed
- Best for
- New builds, extensions, heat pumps
Clip rail
Self-adhesive clip rails stick to the insulation and the pipe clicks into them, then it is covered with screed.
- 1Floor finish
- 2Screed
- 316mm pipe in self-adhesive clip rail
- 4Membrane
- 5Foil-faced insulation
- 6Damp-proof membrane
- 7Concrete slab
- Added height
- Insulation plus screed
- Best for
- New builds and extensions
MaxHeatFix low profile panel
A 15mm panel goes straight onto the existing floor. 12mm pipe clips between the oval bosses, then a thin levelling compound covers it, ready to tile.
- 1Tiles
- 2Tile adhesive
- 3Levelling compound
- 412mm pipe in MaxHeatFix panel
- 5Existing floor
- Added height
- About 18mm
- Best for
- Renovations, kitchens, bathrooms
MaxHeatSolo egg crate panel
A self-adhesive egg crate panel sticks to the existing floor. 12mm pipe presses between the studs, then levelling compound is poured over for a thin, fast-warming floor.
- 1Floor finish
- 2Levelling compound
- 312mm pipe in MaxHeatSolo panel
- 4Self-adhesive backing
- 5Existing floor
- Added height
- Low build-up with compound
- Best for
- Renovations and single rooms
MaxHeatDeck overlay board
20mm routed boards with a cement face go straight over the existing floor. The pipe presses into the grooves and you tile directly on top. No screed and no digging up.
- 1Tiles
- 2Flexible tile adhesive
- 316mm pipe in MaxHeatDeck board
- 4Existing floor deck
- 5Existing joists and insulation
- Added height
- 20mm board plus tile bed
- Best for
- Renovations, kitchens, bathrooms

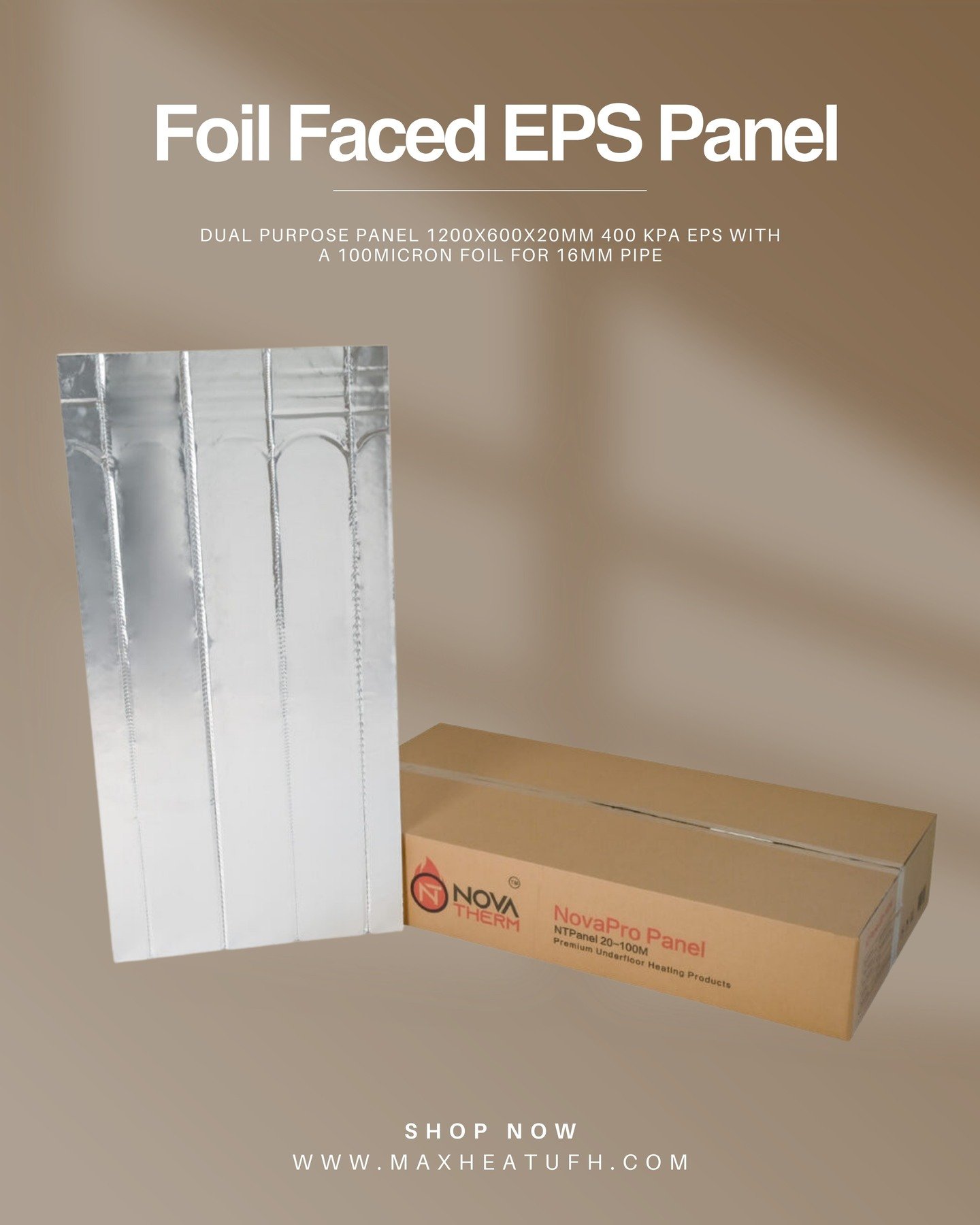

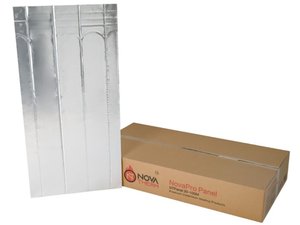

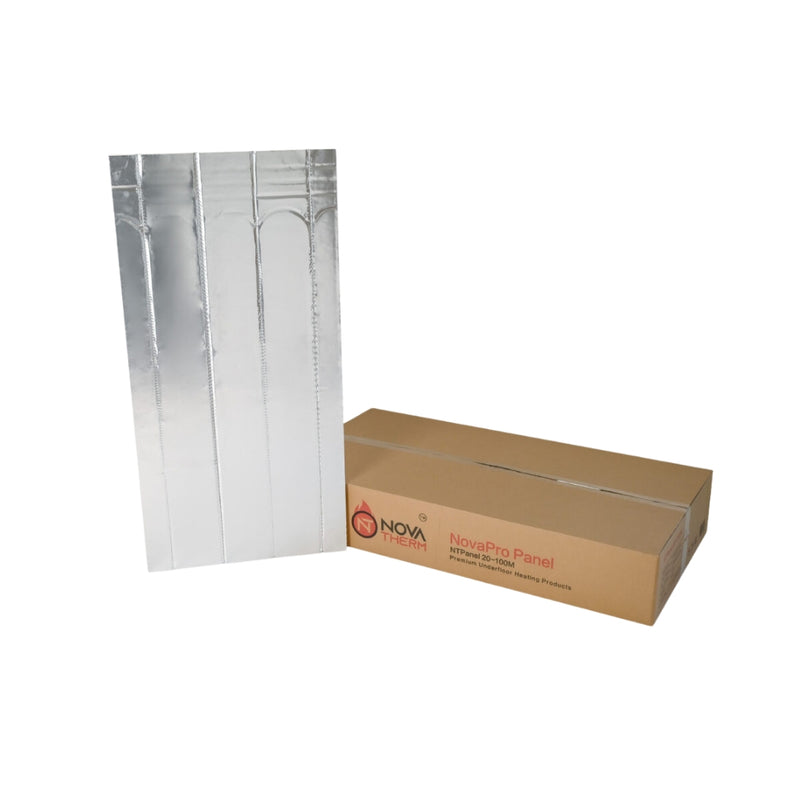

MaxHeatPro foil-faced panel
Routed EPS panels with an aluminium foil face go over the existing floor. The foil spreads the heat from the pipe across the floor, ready for a floating wood or laminate floor laid across the pipes.
- 1Floating floor on underlay
- 216mm pipe in MaxHeatPro panel
- 3Aluminium foil face
- 4Existing floor deck
- 5Existing joists and insulation
- Added height
- Just the panel
- Best for
- Wood and laminate floating floors
MaxHeatPanel routed board
Pre-routed white EPS panels go straight over the existing floor. The pipe presses into the grooves and runs out through the return channels at the end of each board, then the floor finish goes on top. No screed and no digging up.
- 1Tiles
- 2Tile adhesive
- 316mm pipe in MaxHeatPanel
- 4Existing floor deck
- 5Existing joists and insulation
- Added height
- Just the panel plus finish
- Best for
- Renovations and low build-up floors
Triple spreader plates
Aluminium spreader plates sit over the joists with insulation underneath. The pipe snaps into the grooves, then the chipboard deck goes back on top.
- 122mm chipboard deck
- 216mm pipe in aluminium spreader plates
- 3Mineral wool insulation
- 4Joists
- Added height
- None above the deck
- Best for
- Floors with the deck lifted
Fit-from-below plates
Double-channel aluminium plates screw to the underside of the floor, two end to end in each joist bay. The pipe passes through holes drilled in the joists, so the floor upstairs stays down. Insulation goes in below.
- 1Existing floor deck (stays in place)
- 216mm pipe at 150mm centres in double-channel plates
- 3Insulation fitted below the plates
- 4Joists
- Added height
- None
- Best for
- Upstairs floors with access from below
MaxHeatChip grooved chipboard
22mm grooved chipboard is laid across the joists as the floor deck. 12mm pipe sits in the grooves, then a cover board and the floor finish go on top.
- 1Tiles
- 2Tile adhesive
- 3Fibre cover board
- 412mm pipe in 22mm MaxHeatChip
- 5Mineral wool insulation
- 6Joists
- Added height
- Replaces the floor deck
- Best for
- New timber floors and loft conversions

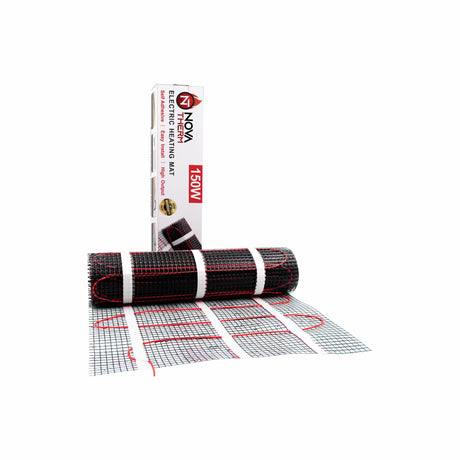

Electric heating mat
A thin heating mat on a self-adhesive mesh is rolled out on backer board and tiled over in the adhesive bed. Quick to fit in a single room.
- 1Tiles
- 2Tile adhesive
- 3Heating mat on fibreglass mesh
- 4Cement-coated backer board
- 5Subfloor
- Added height
- 3 to 4mm mat in the adhesive bed
- Best for
- Bathrooms, kitchens, single rooms
Loose heating cable
A single heating cable is pressed between the studs of an uncoupling membrane at the spacing you need, then tiled over in the adhesive bed. Shapes round any room, so it suits awkward layouts.
- 1Tiles
- 2Tile adhesive
- 3Heating cable in studded membrane
- 4Adhesive bed
- 5Subfloor
- Added height
- Membrane plus adhesive bed
- Best for
- Bathrooms, kitchens and awkward-shaped rooms
