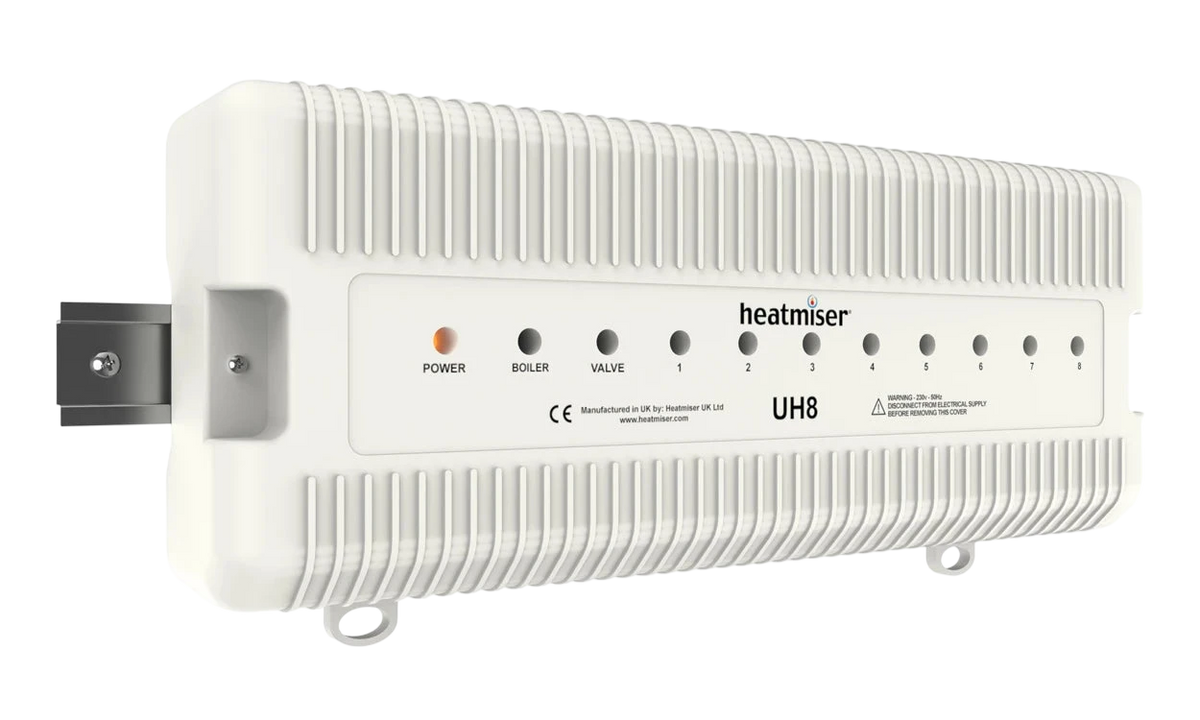

Heatmiser UH8 8 Zone Wiring Centre 230V

The Heatmiser UH8 is a 230V underfloor heating wiring centre for up to 8 zones. It's the most common choice for whole-house wet UFH. Each mains room thermostat opens the actuators on its loops, and the UH8 calls the pump and boiler whenever any zone needs heat.

Why installers use it

• 8 zones: enough for most houses from one manifold.
• Up to 6 actuators per zone: for open-plan rooms with several loops.
• Boiler and pump outputs: for a system boiler and the UFH pump.
• Radiator option on zone 8: plus DIN rail mounting and LED indication.

Specification

Choosing the wiring centre

For 4 zones or fewer, the Heatmiser UH4 4 Zone Wiring Centre is enough. If you want battery thermostats, use the Heatmiser UH8-RF Wireless Wiring Centre. For 12V thermostats, use the Heatmiser UH8-N 12V Network Wiring Centre.

Works with

• 2-Wire Thermal Actuators 230V
• Heatmiser neoStat V3 thermostats
• Heatmiser neoHub G3 for app control
• UFH Manifolds

Questions

Which thermostats work with the UH8?
230V mains thermostats such as the neoStat V3, Edge, Touch, DS1 and DS1-L.

How many actuators can it run?
Up to 6 per zone, within the 5A total board limit.

Order by 12pm, Monday to Friday, for next working day UK delivery. Trade account holders get trade pricing.

Product code: HM-UH8
