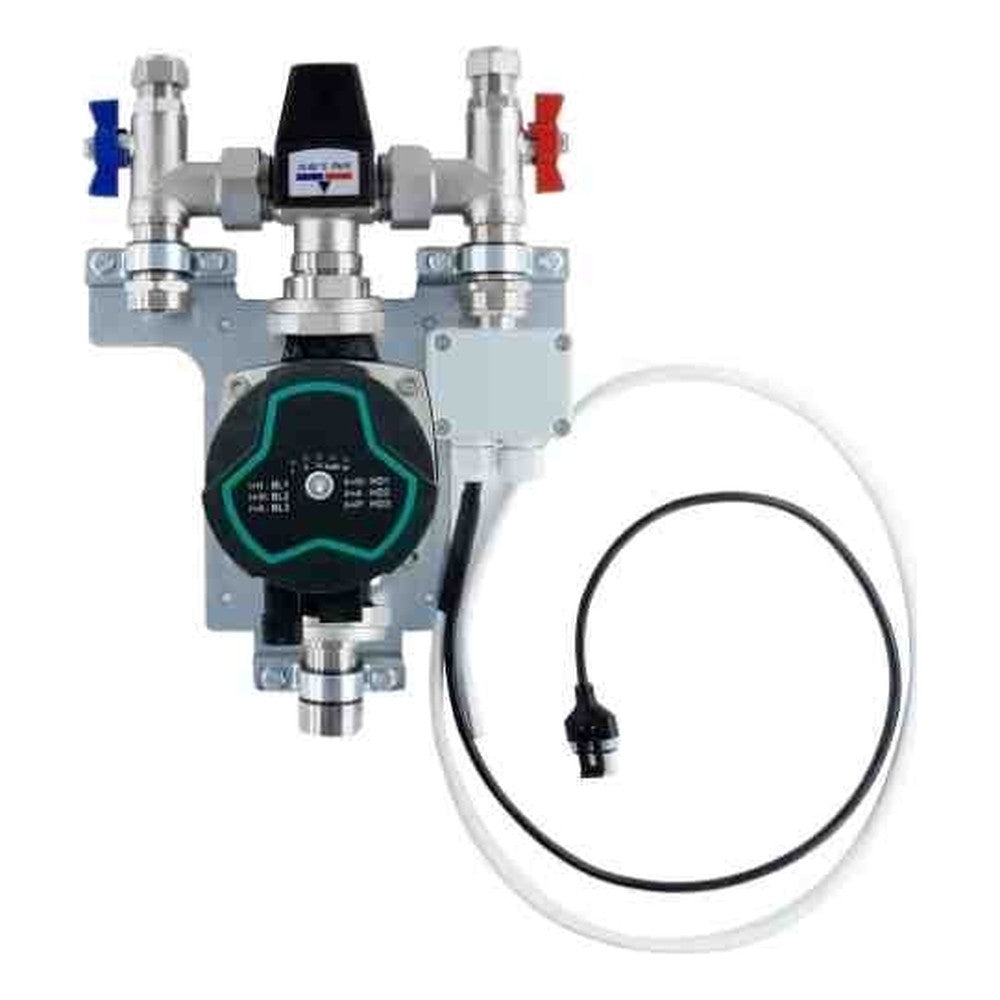

ESBE Single Room UFH Mixing Pump Pack with Bastion A-Rated 6m Pump
Product details
This ESBE single room UFH mixing pump pack comes with a Bastion A-rated 6m-head pump and its power cable. It suits a standard single room, such as a kitchen or small extension, run from a radiator or boiler circuit. The ESBE valve has a built-in bypass and holds a steady 35–60°C to the floor loop, and the pack mounts on its own wall back plate.
Why installers use it
- Bastion 6m pump: A-rated, with power cable supplied.
- PWM option: a Bastion PWM signal cable is available if you want speed control.
- ESBE bypass valve: steady 35–60°C to the floor loop.
- No manifold: one circuit, wall mounted on its own back plate.
Specification
| Item | Detail |
|---|---|
| Mixing valve | ESBE thermostatic, built-in bypass |
| Mixed flow temperature | 35–60°C |
| Circuits | 1 (single room) |
| Mounting | Own wall back plate |
| Max system pressure | 10 bar |
| Pump | Bastion A-rated, 6m head, cable included |
Works with
- UFH pipe
- Heatmiser DS1 Thermostat
- Bastion Replacement Pump Cables
- ESBE Single Room Pack with Bastion 7.5m Pump for longer loops
Questions
6m or 7.5m?
The 6m suits most single rooms. Choose the 7.5m pack for a long loop or a larger room.
Is it ready to fit?
Yes. It's pre-assembled and tested, with isolation valves and a pre-wired pump terminal box.
Order by 12pm, Monday to Friday, for next working day UK delivery.
Product codes: MH-SRE-BAS6
