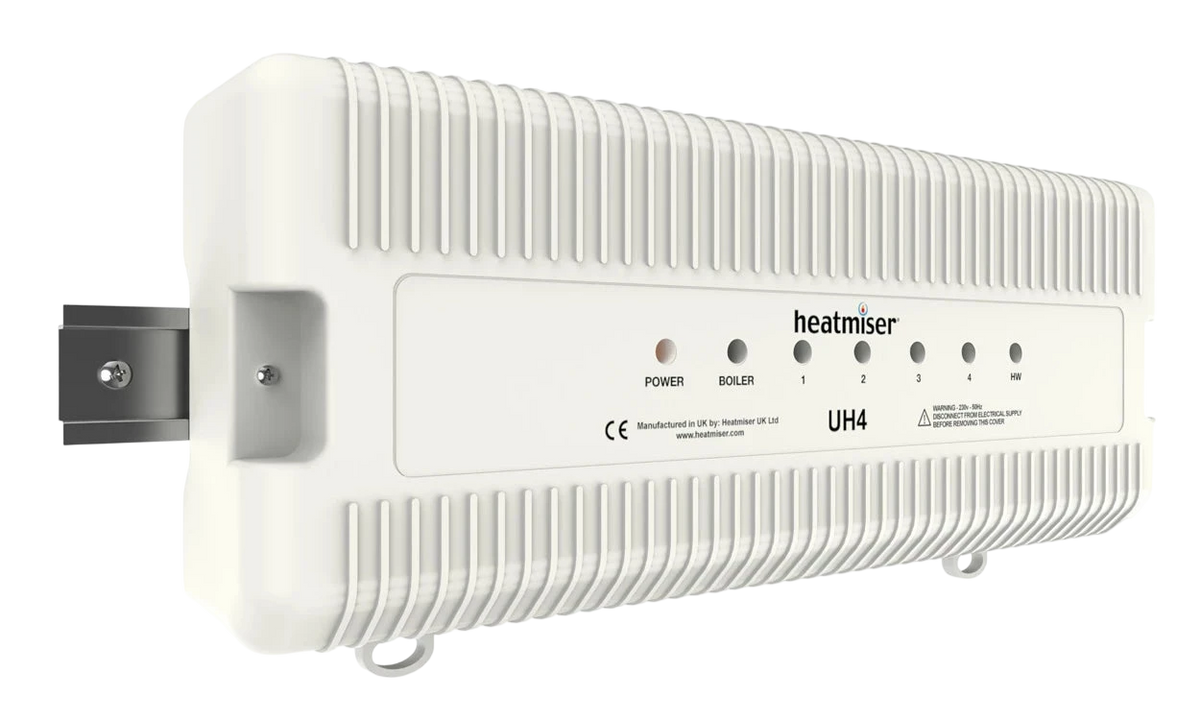

Heatmiser UH4 4 Zone Wiring Centre 230V
Product details
The Heatmiser UH4 is a 230V wiring centre for smaller underfloor heating systems with up to 4 zones. It links your mains room thermostats to the manifold actuators, then calls the pump and boiler when any zone needs heat. It also has a hot water output.
Why installers use it
- Up to 6 actuators per zone: run large rooms with several loops off one thermostat.
- Boiler and pump control: outputs for the system boiler and the UFH pump.
- Radiator option: zone 4 can be used for a radiator circuit.
- Neat install: DIN rail mounting and LED indication for each zone.
Specification
| Specification | UH4 |
|---|---|
| Heating zones | 4 |
| Thermostats | 230V mains |
| Actuators per zone | Up to 6 |
| Total board load | 5A |
| Relay max load | 3A |
| Supply | 230V AC |
| Size (L x H x D) | 384 x 148 x 60mm |
| Radiator zone option | Zone 4 |
| Hot water output | 1 |
| Protection | IP20 |
Choosing the wiring centre
Use the UH4 for up to 4 zones. For 5 to 8 zones, choose the Heatmiser UH8 8 Zone Wiring Centre. For battery thermostats, choose the Heatmiser UH8-RF Wireless Wiring Centre.
Works with
- 2-Wire Thermal Actuators 230V
- Heatmiser neoStat V3 or DS1 thermostats
- UFH Manifolds
Questions
Which thermostats can I use?
230V mains thermostats, such as the Heatmiser neoStat V3, Edge, Touch or DS1.
How many actuators can I connect?
Up to 6 per zone, within the 5A total board limit.
