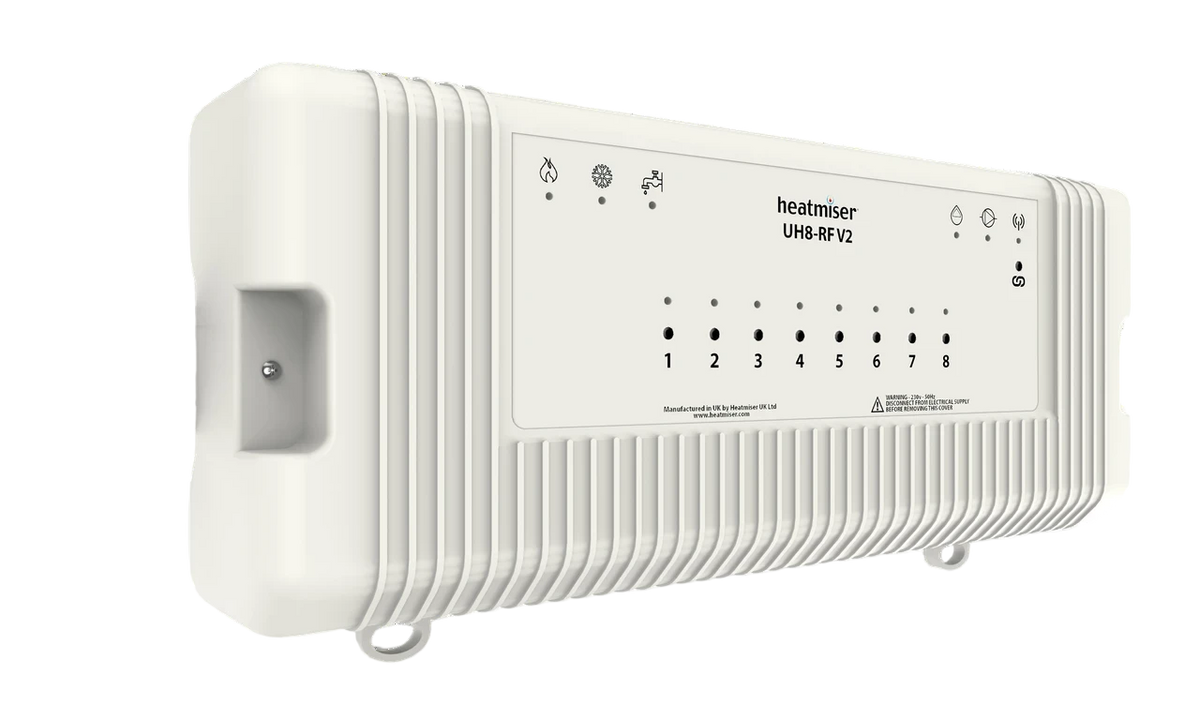

Heatmiser UH8-RF 8 Zone Wireless Wiring Centre
Product details
The Heatmiser UH8-RF is an 8 zone wireless wiring centre for underfloor heating. It receives signals from battery thermostats such as the Slimline-RF and neoAir, so you don't need to run thermostat cables to each room. That makes it a good fit for retrofit jobs and finished homes.
Why installers use it
- No thermostat cables: pairs with Slimline-RF and neoAir wireless thermostats.
- Wireless boiler link: add an RF-Switch at the boiler instead of running a cable.
- Hot water output: plus a radiator option on any zone, set in software.
- Up to 6 actuators per zone: with DIN rail mounting and LED indication.
Specification
| Specification | UH8-RF |
|---|---|
| Heating zones | 8 |
| Thermostats | Wireless (Slimline-RF, neoAir) |
| Actuators per zone | Up to 6 |
| Total board load | 5A |
| Relay max load | 3A |
| Supply | 230V AC |
| Size (L x H x D) | 384 x 148 x 60mm |
| Radiator zone option | Any zone (software) |
| Hot water output | 1 |
Works with
- Heatmiser neoAir
- Heatmiser Slimline-RF
- Heatmiser RF-Switch Two Channel Receiver for the boiler link
- 2-Wire Thermal Actuators 230V
Questions
Can I use wired thermostats with it?
It's designed for wireless thermostats. For wired 230V thermostats, use the Heatmiser UH8.
How do I extend the range?
A Heatmiser neoPlug acts as a wireless repeater for the UH8-RF.
Order by 12pm, Monday to Friday, for next working day UK delivery.
Product code: HM-UH8-RF
Specifications
| Brand | Heatmiser |
|---|---|
| Code | HM-UH8-RF |
| Type | Thermostat & Control |
