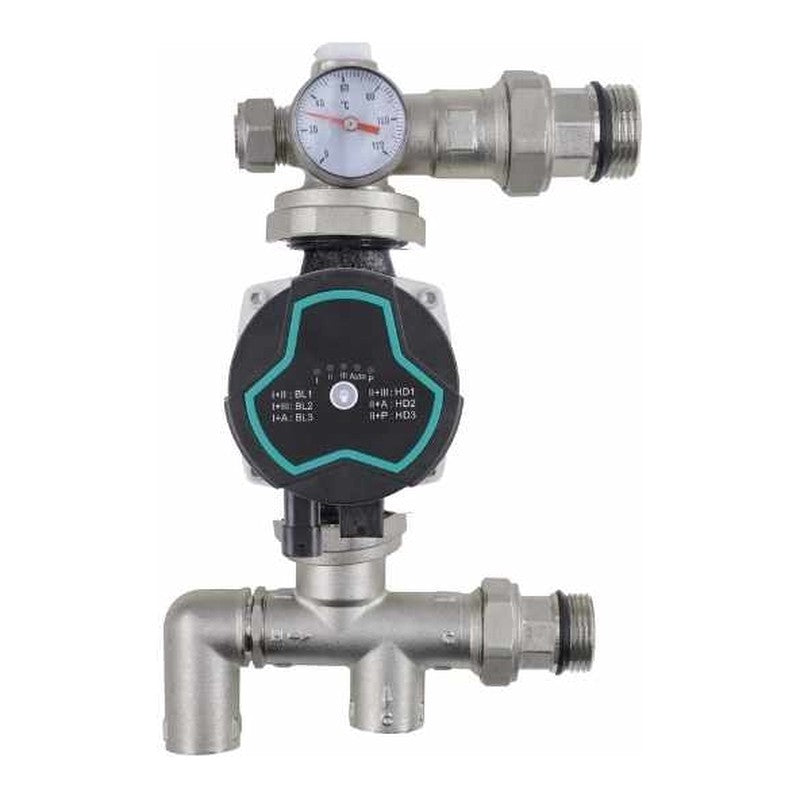

UFH Non-Mixing Pump Set with Bastion A-Rated 6m Pump
Product details
A non-mixing UFH pump set with a Bastion A-rated 6m-head pump and its power cable. It's for standard-sized manifolds on a heat pump or other low-temperature source, where no blending valve is needed. It bolts onto the manifold, takes the primary flow and return from the side or bottom, and can be fitted left- or right-hand.
Why installers use it
- Bastion 6m pump: A-rated, power cable included.
- PWM option: add the Bastion PWM signal cable for speed control.
- No blending valve: for flow that's already at floor temperature.
- Reversible: left- or right-hand fitting.
Specification
| Item | Detail |
|---|---|
| Mixing | None (no blending valve) |
| Mounting | Directly on the UFH manifold |
| Primary entry | Side or bottom |
| Handing | Left or right hand |
| Max system pressure | 10 bar |
| Pump | Bastion A-rated, 6m head, cable included |
Works with
- Heat pump connection
- Auto-Balancing Stainless Steel UFH Manifold
- Bastion Replacement Pump Cables
- Non-Mixing Pump Set with Bastion 7.5m Pump for larger systems
Questions
Do I need non-mixing or blending?
Non-mixing is for heat sources that already run at floor temperature, typically below 50–55°C, such as a heat pump. If your boiler runs hotter, use a blending valve pump pack instead.
6m or 7.5m?
The 6m suits most single-manifold systems. Choose the 7.5m for larger systems or longer loops.
Order by 12pm, Monday to Friday, for next working day UK delivery.
Product codes: MH-NM-BAS6
Specifications
| Brand | Bastion |
|---|---|
| Code | MH-NM-BAS6 |
| Type | Pump & Controls |
