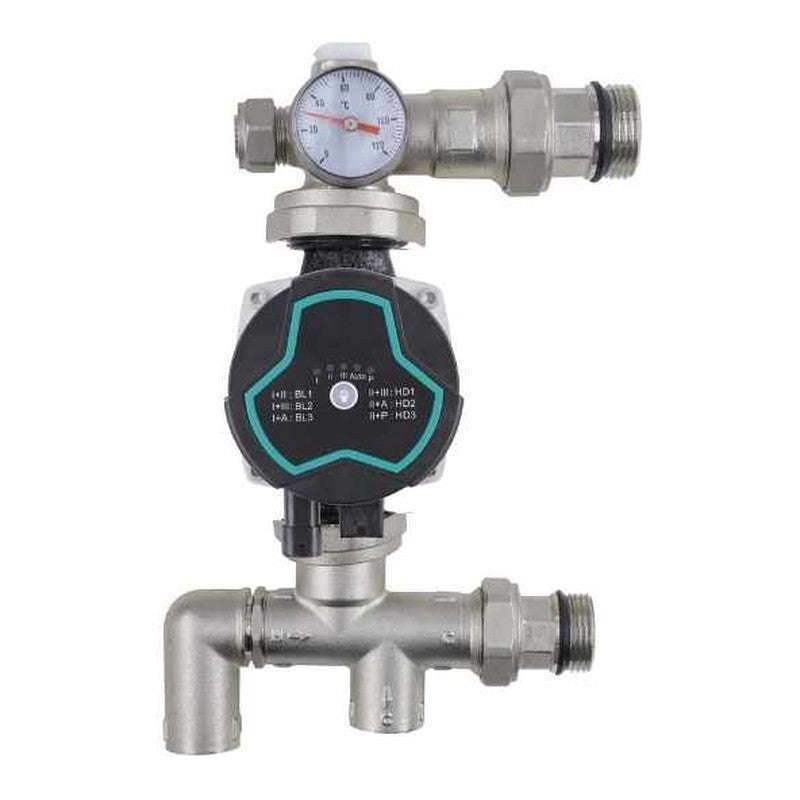

UFH Non-Mixing Pump Set with Bastion A-Rated 7.5m Pump
Product details
A non-mixing UFH pump set with the higher-head Bastion A-rated 7.5m pump, for larger heat pump systems or longer loops. Use it where the flow is already at floor temperature, typically below 50–55°C, so no blending valve is needed. It bolts onto the manifold, takes the primary flow and return from the side or bottom, and can be fitted left- or right-hand. The pump's power cable is included.
Why installers use it
- 7.5m head: for bigger floor areas and longer loops.
- Heat pump ready: no blending valve in the way of a low flow temperature.
- Side or bottom entry: to suit how the primaries arrive.
- Pre-assembled and tested: bolts straight on.
Specification
| Item | Detail |
|---|---|
| Mixing | None (no blending valve) |
| Mounting | Directly on the UFH manifold |
| Primary entry | Side or bottom |
| Handing | Left or right hand |
| Max system pressure | 10 bar |
| Pump | Bastion A-rated, 7.5m head, cable included |
Works with
Questions
When do I need the 7.5m pump?
On larger systems or longer loops. Send us your plans and we'll check the pump against your loop lengths.
Can it go on either side of the manifold?
Yes. It's fully reversible for left- or right-hand fitting, with side or bottom primary entry.
Order by 12pm, Monday to Friday, for next working day UK delivery.
Product codes: MH-NM-BAS75
Specifications
| Brand | Bastion |
|---|---|
| Code | MH-NM-BAS75 |
| Type | Pump & Controls |
