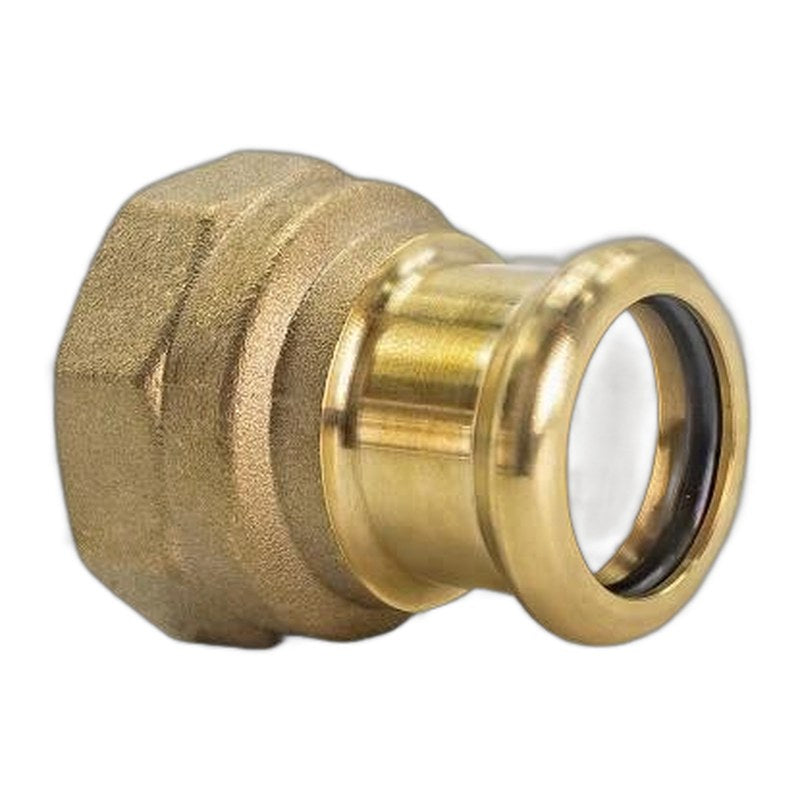

Copper M-Press Female Straight
Product details
A copper M-press female straight adaptor goes from copper tube to a female thread in a straight line. Press it onto the tube and screw in a male threaded part such as a valve, pump union, drain cock or tank connector. We stock 11 sizes from 15mm x 1/2" up to 54mm x 2".
Why installers use it
- 11 sizes: including reducing and enlarging threads, such as 15mm x 3/4" and 22mm x 1/2".
- Tube to thread: a clean change from press to threaded in one fitting.
- Flame-free: no heat near seals or plastic parts on the threaded side.
- Full packs: bag or box. 54mm x 2" is box only.
Pack sizes
| Size | Bag | Box |
|---|---|---|
| 15mm x 1/2" | 10 | 180 |
| 15mm x 3/4" | 10 | 120 |
| 22mm x 1/2" | 10 | 120 |
| 22mm x 3/4" | 10 | 90 |
| 22mm x 1" | 10 | 70 |
| 28mm x 3/4" | 5 | 80 |
| 28mm x 1" | 5 | 60 |
| 35mm x 1" | 5 | 35 |
| 35mm x 1 1/4" | 5 | 35 |
| 42mm x 1 1/2" | 2 | 20 |
| 54mm x 2" | – | 16 |
Works with
- Copper M-Press Male Straight
- Copper M-Press Female Elbow
- Copper M-Press Straight Union MI
- Copper M-Press Fittings
Questions
Which press tool do I need?
Any tool that takes M-profile jaws in the size you are pressing. With MaxHeatUFH jaws, 15, 22 and 28mm fit both the Electric Hydraulic Press Tool (MH-EHCS) and the High Power tool (MH-HPEHCS). 35, 42 and 54mm need the High Power tool.
Can I buy single adaptors?
No. They come in full bags or boxes only, as our supplier does not split packs.
Order by 12pm, Monday to Friday, for next working day UK delivery.
Product codes: MHF9-S15x1/2F-BAG10, MHF9-S15x1/2F-BOX180, MHF9-S15x3/4F-BAG10, MHF9-S15x3/4F-BOX120, MHF9-S22x1/2F-BAG10, MHF9-S22x1/2F-BOX120, MHF9-S22x3/4F-BAG10, MHF9-S22x3/4F-BOX90, MHF9-S22x1F-BAG10, MHF9-S22x1F-BOX70, MHF9-S28x3/4F-BAG5, MHF9-S28x3/4F-BOX80, MHF9-S28x1F-BAG5, MHF9-S28x1F-BOX60, MHF9-S35x1F-BAG5, MHF9-S35x1F-BOX35, MHF9-S35x1-1/4F-BAG5, MHF9-S35x1-1/4F-BOX35, MHF9-S42x1-1/2F-BAG2, MHF9-S42x1-1/2F-BOX20, MHF9-S54x2F-BOX16
Specifications
| Brand | MaxHeatUFH |
|---|---|
| Code | MHF9-S15x1/2F-BAG10 |
| Type | Copper M-Press Fitting |
| Size | 15mm x 1/2", 15mm x 3/4", 22mm x 1/2", 22mm x 3/4", 22mm x 1", 28mm x 3/4", 28mm x 1", 35mm x 1", 35mm x 1 1/4", 42mm x 1 1/2", 54mm x 2" |
| Pack | Bag, Box |
Delivery & returns
Next working day delivery on UK mainland orders placed by 12pm, Monday to Friday. Delivery is calculated at checkout. See our delivery and shipping policy and returns policy.
Need help choosing?
Try our MaxHeatUFH ProLoop to design and price your floor, or email sales@maxheatufh.com with your floor plan.
