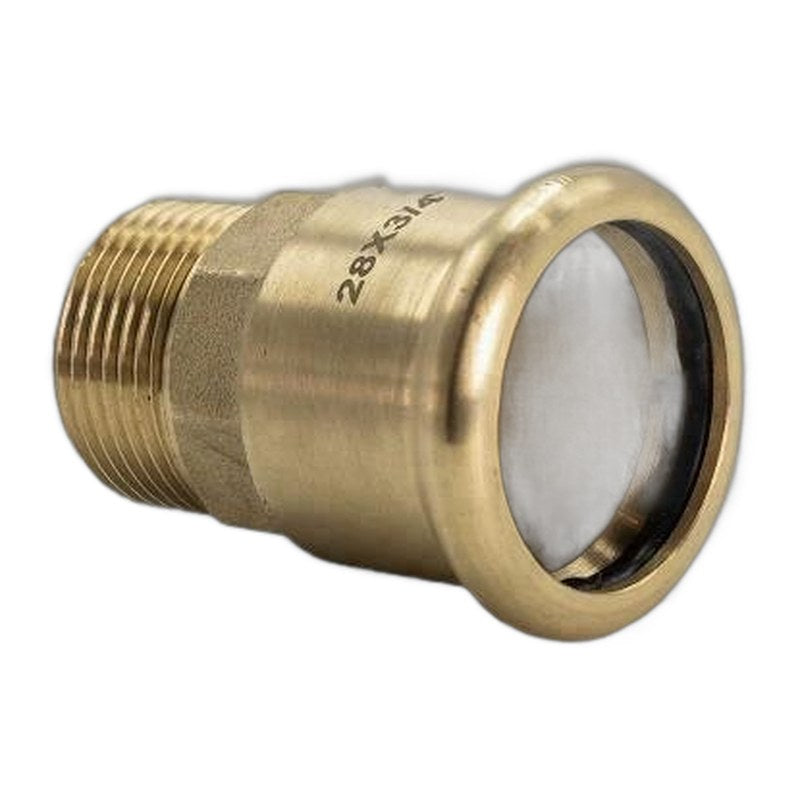

Copper M-Press Male Straight
Product details
A copper M-press male straight adaptor goes from copper tube to a male thread in a straight line. Screw it into a female port on a valve, cylinder, boiler, manifold or pump, then press the tube on. There are 11 sizes from 15mm x 1/2" to 54mm x 2".
Why installers use it
- Into any female port: the male thread screws straight in.
- Wide size range: from 15mm x 1/2" for domestic work to 54mm x 2" for plant rooms.
- Press after fixing: tighten the thread first, then press the tube with no heat near the joint.
- Full packs: bag or box. 54mm x 2" is box only.
Pack sizes
| Size | Bag | Box |
|---|---|---|
| 15mm x 1/2" | 10 | 200 |
| 15mm x 3/4" | 10 | 150 |
| 22mm x 1/2" | 10 | 120 |
| 22mm x 3/4" | 10 | 100 |
| 22mm x 1" | 10 | 80 |
| 28mm x 3/4" | 5 | 70 |
| 28mm x 1" | 5 | 70 |
| 35mm x 1" | 5 | 40 |
| 35mm x 1 3/4" | 5 | 40 |
| 42mm x 1 1/2" | 2 | 20 |
| 54mm x 2" | – | 16 |
Works with
- Copper M-Press Female Straight
- Copper M-Press Male Elbow
- MaxHeatUFH M-Profile Press Jaws and the Electric Hydraulic Press Tool Set
- Copper M-Press Fittings
Questions
Male or female adaptor?
Choose male to screw into a female port. If the part has a male thread, choose the female straight.
Can I buy single fittings?
No. Our supplier does not split packs, so we sell full bags and boxes only.
Order by 12pm, Monday to Friday, for next working day UK delivery.
Product codes: MHF9-S15x1/2-BAG10, MHF9-S15x1/2-BOX200, MHF9-S15x3/4-BAG10, MHF9-S15x3/4-BOX150, MHF9-S22x1/2-BAG10, MHF9-S22x1/2-BOX120, MHF9-S22x3/4-BAG10, MHF9-S22x3/4-BOX100, MHF9-S22x1-BAG10, MHF9-S22x1-BOX80, MHF9-S28x3/4-BAG5, MHF9-S28x3/4-BOX70, MHF9-S28x1-BAG5, MHF9-S28x1-BOX70, MHF9-S35x1-BAG5, MHF9-S35x1-BOX40, MHF9-S35x1-3/4-BAG5, MHF9-S35x1-3/4-BOX40, MHF9-S42x1-1/2-BAG2, MHF9-S42x1-1/2-BOX20, MHF9-S54x2-BOX16
Specifications
| Brand | MaxHeatUFH |
|---|---|
| Code | MHF9-S15x1/2-BAG10 |
| Type | Copper M-Press Fitting |
| Size | 15mm x 1/2", 15mm x 3/4", 22mm x 1/2", 22mm x 3/4", 22mm x 1", 28mm x 3/4", 28mm x 1", 35mm x 1", 35mm x 1 3/4", 42mm x 1 1/2", 54mm x 2" |
| Pack | Bag, Box |
