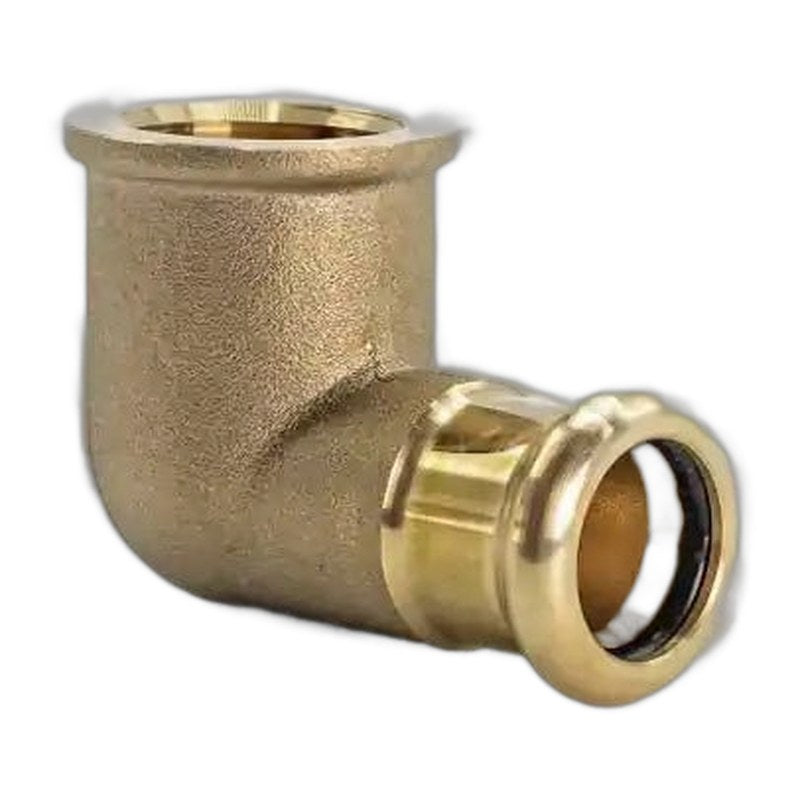

Copper M-Press Female Elbow
Product details
A copper M-press female elbow turns 90° and changes from copper tube to a female thread. Press one end onto tube and screw a male threaded part, such as a valve, drain cock or appliance connection, into the other. Sizes are 15mm x 1/2", 22mm x 3/4" and 28mm x 1".
Why installers use it
- Tube to thread at a corner: no separate elbow and adaptor needed.
- Matched sizes: each tube size pairs with its usual thread size.
- Press end: flame-free with an M-profile jaw.
- Bag or box: full packs only. Our supplier does not split packs.
Pack sizes
| Size | Bag | Box |
|---|---|---|
| 15mm x 1/2" | 10 | 100 |
| 22mm x 3/4" | 5 | 60 |
| 28mm x 1" | 5 | 35 |
Works with
- Copper M-Press Male Elbow
- Copper M-Press Female Wall Plated Elbow
- Copper M-Press Female Straight
- Copper M-Press Fittings
Questions
Which end do I press?
Only the tube end. The threaded end is sealed in the normal way for a threaded joint.
Can I buy single fittings?
No. Our supplier does not split packs, so we sell full bags and boxes only.
Order by 12pm, Monday to Friday, for next working day UK delivery.
Product codes: MHF9-L15x1/2F, MHF9-L22x3/4F, MHF9-L28x1F
Specifications
| Brand | MaxHeatUFH |
|---|---|
| Code | MHF9-L15x1/2F-BAG10 |
| Type | Copper M-Press Fitting |
| Size | 15mm x 1/2", 22mm x 3/4", 28mm x 1" |
| Pack | Bag, Box |
