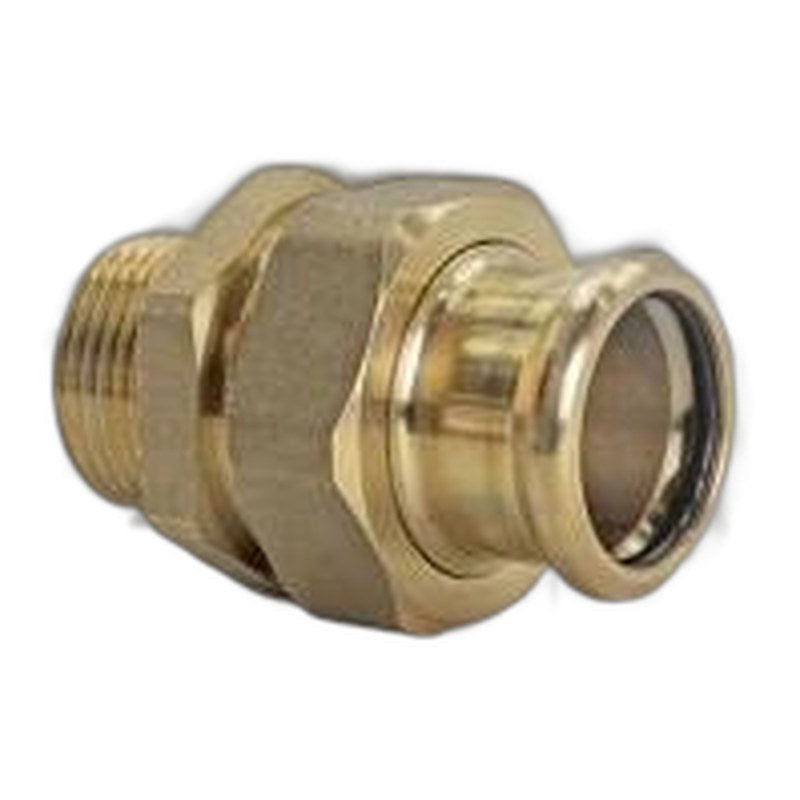

Copper M-Press Straight Union MI
Product details
A copper M-press straight union MI joins copper tube to a male threaded connection through a union, so the joint can be undone later without cutting the pipe. Use it on pumps, valves, appliances and anything that may need taking out for service. Sizes are 15mm x 1/2", 22mm x 3/4" and 28mm x 1".
Why installers use it
- Undo and remake: break the union to remove equipment, then reconnect.
- Male thread: screws into a female port.
- Press end: flame-free on the tube side with an M-profile jaw.
- Bags of 5: or a box. Our supplier does not split packs.
Pack sizes
| Size | Bag | Box |
|---|---|---|
| 15mm x 1/2" MI | 5 | 70 |
| 22mm x 3/4" MI | 5 | 50 |
| 28mm x 1" MI | 5 | 25 |
Works with
- Copper M-Press Male Straight
- Copper M-Press Lever Ball Valve with Female Connection
- MaxHeatUFH M-Profile Press Jaws
- Copper M-Press Fittings
Questions
Why use a union instead of a male adaptor?
A union can be undone without turning the tube, so you can take out a pump or appliance and put it back.
What is the smallest pack?
A bag of 5 in every size. Packs are not split.
Order by 12pm, Monday to Friday, for next working day UK delivery.
Product codes: MHF9-S15x1/2MI, MHF9-S22x3/4MI, MHF9-S28x1MI
Specifications
| Brand | MaxHeatUFH |
|---|---|
| Code | MHF9-S15x1/2MI-BAG5 |
| Type | Copper M-Press Fitting |
| Size | 15mm x 1/2" MI, 22mm x 3/4" MI, 28mm x 1" MI |
| Pack | Bag, Box |
Delivery & returns
Next working day delivery on UK mainland orders placed by 12pm, Monday to Friday. Delivery is calculated at checkout. See our delivery and shipping policy and returns policy.
