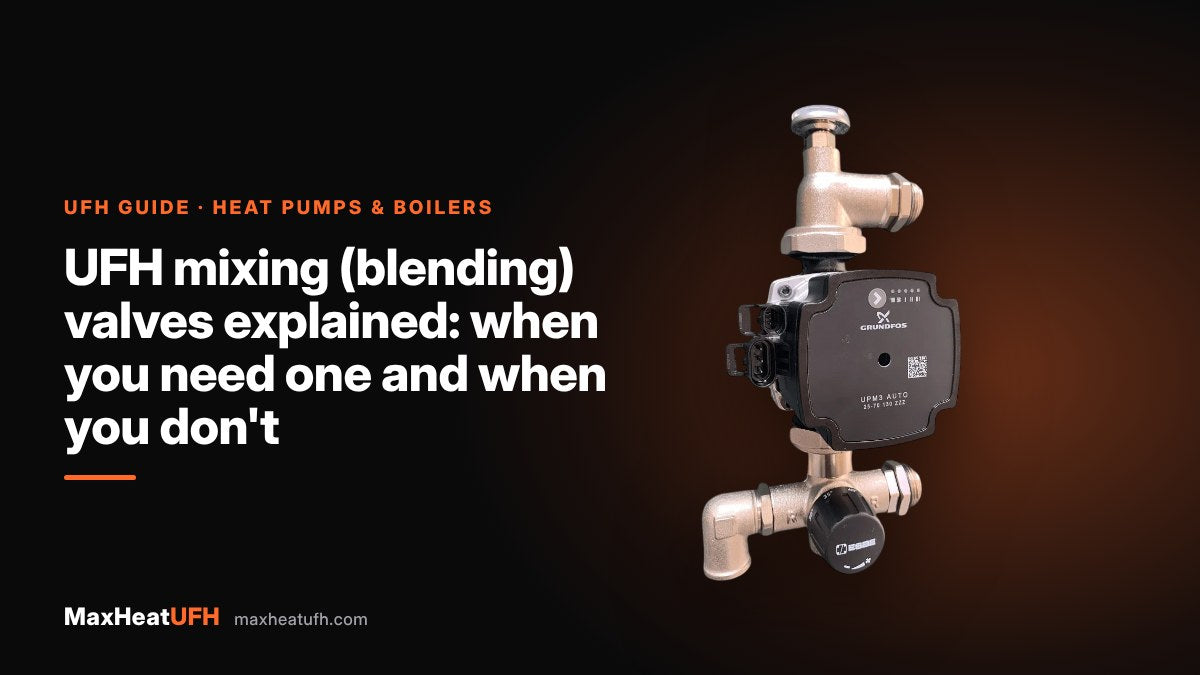

UFH mixing (blending) valves explained: when you need one and when you don't

October 22, 2026

Short answer: A mixing (blending) valve lowers hot water from the heat source to a safe floor temperature, usually 35 to 50°C, by mixing it with cooler water coming back from the loops. You need one whenever the heat source can send water hotter than the floor allows, which means almost every boiler. You usually don't need one with a heat pump that already runs at floor temperature, where a non-mixing pump set is the better choice.

Underfloor heating needs much cooler water than radiators. The Danfoss underfloor heating handbook says the supply must not exceed 55°C for cement and calcium sulphate screed, and 50°C for gypsum based floors. Boilers, solid fuel stoves and some thermal stores run well above that, so something has to bring the temperature down before the water reaches the pipe.

This guide explains how a blending valve works, the different types, when you need one and when you don't, how to set it, and which MaxHeatUFH pack to pick. For how the floor connects to the boiler itself, see underfloor heating with a combi or system boiler.

What does a mixing valve do in underfloor heating?

A mixing valve takes a small amount of hot water from the heat source and blends it with a larger amount of cool water returning from the floor, so the water going into the loops stays at the temperature you set. The UFH pump then circulates that blended water round the loops.

The mix is simple arithmetic. With boiler flow at 70°C, floor return at 35°C and the valve set to 45°C, the share of fresh boiler water is (45 − 35) ÷ (70 − 35) = 29%. So if 10 litres a minute go round the floor, about 2.9 litres come from the boiler and 7.1 litres are recirculated.

Boiler flow	Valve set to 45°C	Fresh boiler water
80°C	Return 35°C	22%
70°C	Return 35°C	29%
60°C	Return 35°C	40%
45°C	Return 35°C	100%, valve fully open

The last row matters: a blending valve can only lower the temperature, never raise it. If the heat source sends water at or below the set point, the valve opens fully and the floor gets whatever the heat source gives.

How does a thermostatic blending valve work?

A thermostatic blending valve has a wax capsule that expands as the water warms and closes off the hot inlet, then contracts and opens it again as the water cools. You turn a dial to set the temperature, and the valve holds it with no wiring or power. Only the pump on the pack is wired.

Worcester Bosch describes two common layouts in its technical bulletin on connecting UFH to a boiler:

Injector control valve (ICV). Found on most modern domestic manifold pump packs. It injects primary water into the floor circuit to hold the floor temperature, and it needs positive pressure on the primary pipework to work.
Thermostatic mixing valve (TMV). Mixes primary and return water in one body. It can be fixed or variable, so it can be used with weather compensation, and it can serve remote or multiple manifolds.

Our manifold blending valve packs bolt straight onto the manifold flow and return bars and hold 20 to 55°C. Our single room packs mount on the wall, run one loop off a radiator circuit and hold 35 to 60°C.

What types of mixing valve are there?

For UFH there are three you will meet, plus two valves that are often confused with them.

Valve	How it controls	Typical use
Manifold blending valve	Wax capsule, set by dial	Whole floor off a boiler
Single room mixing pack	Wax capsule, set by dial	One loop off radiators
Motorised mixing valve	Actuator and controller	Weather compensated systems
3-port mid-position valve	Switches, does not mix	Y-plan heating and hot water
Tap TMV	Blends hot water for outlets	Baths and basins, not UFH

A 3-port mid-position valve, despite its name, only sends water to heating, hot water or both. It does not lower the temperature, so it never replaces a UFH blending valve.

When do you need a mixing valve for underfloor heating?

You need one whenever the water arriving at the manifold could be hotter than the floor allows. In practice:

Any boiler heating a cylinder. The Energy Saving Trust says a boiler heating a hot water cylinder needs at least 65°C to keep stored water safe, so the primary is always too hot for a floor.
A boiler shared with radiators. Radiators need hotter water than the floor.
Single room UFH off a radiator circuit. The radiators set the temperature, so the room pack must mix down.
Solid fuel, biomass and thermal stores. These run hot and vary, so mix and protect the floor.
A heat pump that also feeds high temperature radiators on a shared circuit. The floor needs protecting from the radiator temperature.

When don't you need a mixing valve?

You don't need one when the heat source already sends water at floor temperature and cannot send it hotter. That is the normal case for a heat pump serving only underfloor heating. A blending valve there adds resistance and can hold back the low flow temperature a heat pump needs to run efficiently. Use a non-mixing pump set instead.

Electric underfloor heating has no water, so it has no mixing valve. The floor temperature is limited by a floor probe on the thermostat.

A boiler that serves only the floor and is locked to a low flow temperature can in theory run without one, but if anyone turns the boiler up, the floor is unprotected. Most designers fit a blending valve on any boiler.

What temperature should I set the blending valve to?

Set it to the design flow temperature for your floor, which is usually 35 to 50°C, and never above the limit for your screed, board or floor finish. Start low and raise it a few degrees at a time.

Screed with tiles or stone: often 40 to 50°C, never above the screed maker's limit. One flowing screed maker gives 50°C as its maximum running temperature.
Overlay boards and joisted floors: often 45 to 50°C, because there is less mass to spread heat. One overlay maker gives a 45 to 50°C design flow for its boards.
Wood, LVT or carpet: check the flooring maker's maximum surface temperature, which may cap the flow temperature lower.

Our manifold packs top out at 55°C. Our single room packs go up to 60°C, so set them below the floor's limit rather than at the top of the dial. The water temperature is only half the story: the floor surface must also stay within BS EN 1264 limits, which our heat pump guide lists.

How do I set up and check a blending valve?

Fit isolating ball valves on the primary flow and return to the pack, so you can service it without draining down.
Check the primary flow and return go to the correct ports. Swapped primaries are a common reason a pack won't heat.
Fill, vent and pressure test the floor loops before any screed goes down.
Set the dial to its lowest useful setting and run the heating with the boiler at its normal temperature.
Read the gauge on the pack once the system has run for a while. The floor flow should settle near the dial setting.
For a new screed, follow the screed maker's warm-up schedule before raising the dial to the design temperature.
Balance the loops on the manifold flow meters, then note the final setting for the homeowner.

Why is my blending valve not working?

Most blending valve faults come from the primary side, not the valve. Check these in order:

No hot primary water. If the boiler isn't firing or the zone valve isn't open, the valve has nothing to blend. Check the boiler interlock and the wiring centre.
No pressure on the primary. An injector valve needs positive pressure on the primary pipework. Poorly placed tees or a closed bypass can starve it.
Set too low. If the floor is lukewarm, raise the dial a few degrees and wait a day for a screed floor to respond.
Sticking capsule. If the floor flow tracks the boiler temperature whatever the dial says, the capsule may be stuck and need replacing.

For a full fault-finding list see underfloor heating not getting warm.

Which blending valve pack should I buy?

Pick the pack by job first, then by pump. All MaxHeatUFH packs below are pre-assembled and rated to 10 bar.

Pack	Range	Price inc VAT
Manifold, Bastion 6m	20 to 55°C	£201
Manifold, Bastion 7.5m	20 to 55°C	£204
Manifold, Wilo 6m	20 to 55°C	£231
Manifold, Grundfos UPM3 Flex	20 to 55°C	£255
Manifold, Grundfos UPM3 Auto	20 to 55°C	£266
Manifold valve only	20 to 55°C	£95
Single room, Bastion 6m	35 to 60°C	£201
Single room ESBE, valve only	35 to 60°C	£95

Prices October 2026. The valve-only versions take any 130mm pump with 1½in unions. The ESBE single room valve has a built-in bypass. To compare the pumps, read choosing a UFH pump.

Products for this job

Not sure if you need a blending valve? Design it free with MaxHeatUFH ProLoop. Add your rooms, floor type and heat source, and get a loop design and full kit list with the right pump pack and prices. Start your design

Frequently asked questions

Do I need a mixing valve for underfloor heating with a combi boiler?

Yes, in almost all cases. A combi's heating flow is usually hotter than a floor can take, especially if it also runs radiators. A blending valve pump pack at the manifold holds the floor at a safe temperature.

Do I need a blending valve with a heat pump?

Usually not. If the heat pump serves only the floor at floor temperature, use a non-mixing pump set. Fit a blending valve only if the same circuit also feeds high temperature radiators.

What is the difference between a mixing valve and a blending valve?

In UFH the terms mean the same thing: a valve that mixes hot primary water with cooler return water to set the floor temperature.

Does a UFH blending valve need power?

A thermostatic blending valve doesn't. Its wax capsule works on temperature alone. The pump on the pack needs a 230V supply from the wiring centre.

Why is my underfloor heating too hot?

Check the blending valve setting first, then the gauge reading. If the floor flow follows the boiler temperature whatever the dial is set to, the valve capsule may have failed, or the primaries may be connected the wrong way round.

Can I use a 3-port valve to mix water for underfloor heating?

Not a standard 3-port mid-position motorised valve. It only switches between heating and hot water and does not lower the temperature. Use a UFH blending valve.
