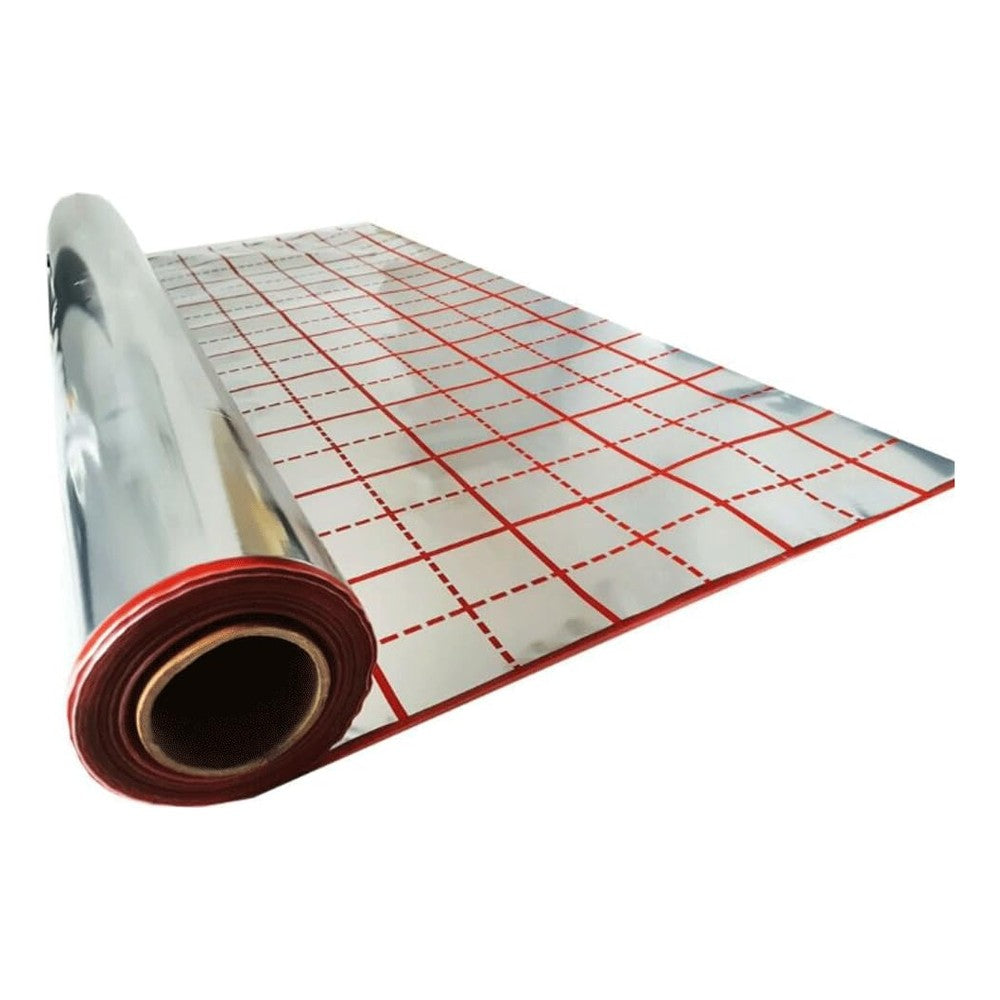

Underfloor Heating Grid Membrane 1.2m Wide
Product details
A printed grid membrane for wet underfloor heating, 1.2m wide. Roll it out over the insulation before screeding. The printed grid lets you set out pipe centres of 100, 150 or 200mm quickly and accurately, and gives tacker clips and staples a tough layer to grip.
Why installers use it
- Printed grid: set out pipe centres without measuring every run.
- Grip for clips: a tough layer for tacker clips and staples.
- For tacker systems under screed: lay over the insulation before the pipe goes down.
- Two roll lengths: 50m or 100m, both 1.2m wide.
Sizes
| Length | Coverage | Code |
|---|---|---|
| 50m | 60m² | MH-GRID-1.2x50 |
| 100m | 120m² | MH-GRID-1.2x100 |
Works with
- High Grip Barbed Pipe Clips
- Tacker Gun for 40mm and 60mm Pipe Clips
- Edge Insulation Foam Roll
- Insulation boards
Questions
What pipe centres does the grid show?
The print lets you set out 100mm, 150mm or 200mm centres.
How much floor does a roll cover?
A 50m roll covers 60m² and a 100m roll covers 120m².
Order by 12pm, Monday to Friday, for next working day UK delivery.
Product codes: MH-GRID-1.2x50, MH-GRID-1.2x100
Specifications
| Brand | MaxHeatUFH |
|---|---|
| Code | MH-GRID-1.2x50 |
| Type | Fixing |
| Length | 50m, 100m |
Delivery & returns
Next working day delivery on UK mainland orders placed by 12pm, Monday to Friday. Delivery is calculated at checkout. See our delivery and shipping policy and returns policy.
Need help choosing?
Try our MaxHeatUFH ProLoop to design and price your floor, or email sales@maxheatufh.com with your floor plan.
