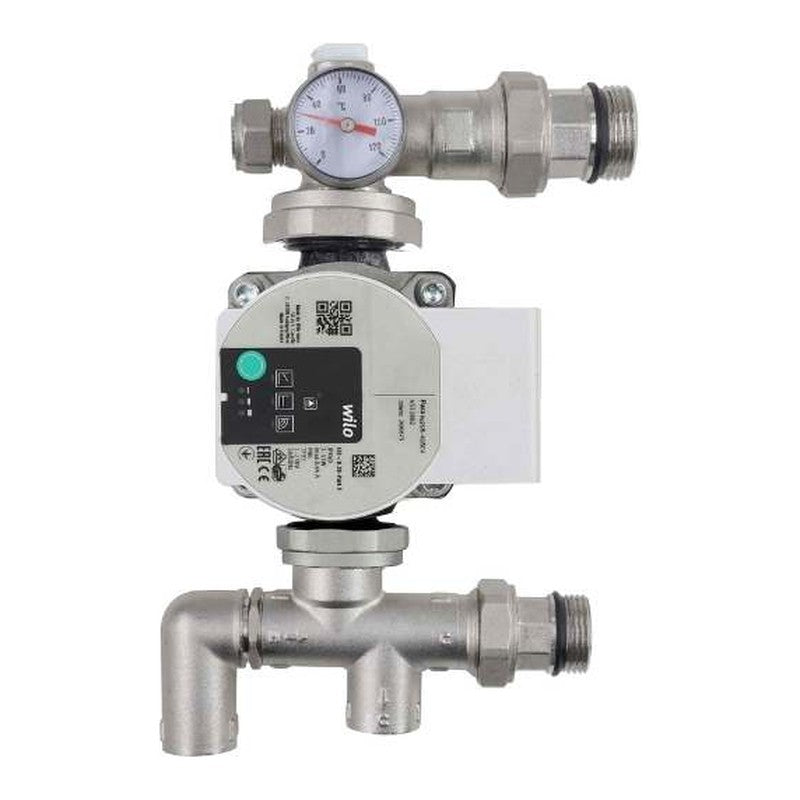

UFH Non-Mixing Pump Set with Wilo A-Rated 6m Pump
Product details
A non-mixing UFH pump set with a Wilo A-rated 6m-head pump and its power cable. It suits manifolds fed by a heat pump or other low-temperature source, where the flow is already at floor temperature, typically below 50–55°C. It bolts onto the manifold, takes the primary flow and return from the side or bottom, and can be fitted left- or right-hand.
Why installers use it
- Wilo 6m pump: A-rated high-efficiency circulator, cable supplied.
- No blending valve: for heat pump and low-temperature systems.
- Flexible connections: side or bottom primary entry, left or right hand.
- Pre-assembled and tested: ready to install.
Specification
| Item | Detail |
|---|---|
| Mixing | None (no blending valve) |
| Mounting | Directly on the UFH manifold |
| Primary entry | Side or bottom |
| Handing | Left or right hand |
| Max system pressure | 10 bar |
| Pump | Wilo A-rated, 6m head, cable included |
Works with
- Heat pump connection
- Dualmix Stainless Steel Manifold Assembly
- 2-Wire Thermal Actuators 230V
- Wilo Replacement Pump Power Cable
Questions
Can it go on either side of the manifold?
Yes. It's fully reversible for left- or right-hand fitting, with side or bottom primary entry.
What pressure is it rated to?
Up to 10 bar system pressure.
Order by 12pm, Monday to Friday, for next working day UK delivery.
Product codes: MH-NM-WILO6
Specifications
| Brand | Wilo |
|---|---|
| Code | MH-NM-WILO6 |
| Type | Pump & Controls |
