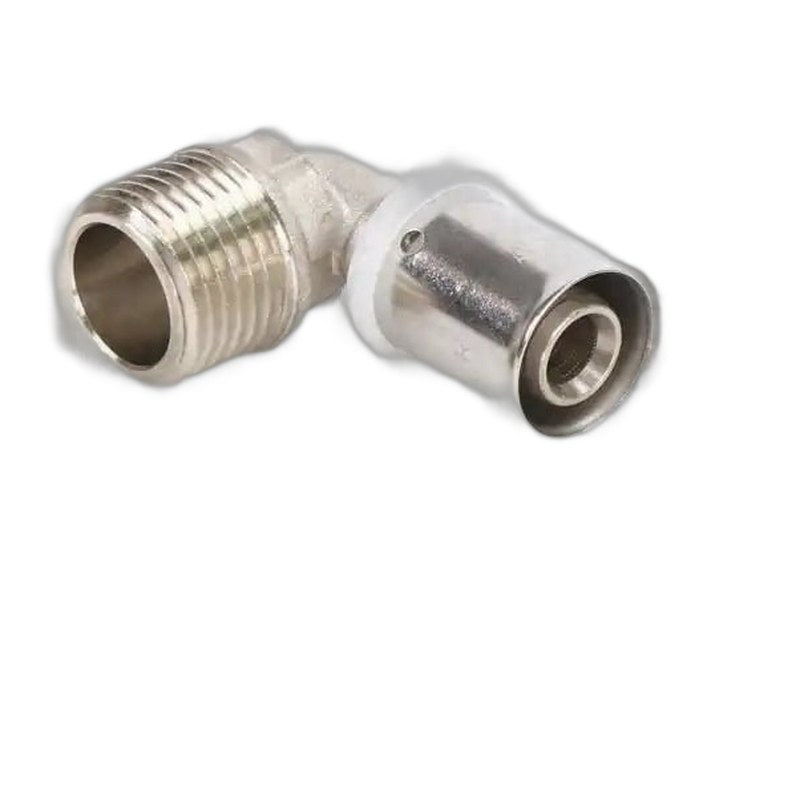

MLCP Press Fit Male Elbow
Product details
An MLCP press fit male elbow is a 90 degree fitting with a press end for multilayer pipe (MLCP or PEX-AL-PEX) and a male BSP thread. Use it to connect into female-threaded fittings, valves and manifolds where the pipe needs to arrive at a right angle.
Why installers use it
- Turn and connect in one: saves an elbow and an adaptor at valves and manifolds.
- Five sizes: 16mm x 1/2", 20mm x 1/2", 20mm x 3/4", 25mm x 3/4" and 32mm x 1".
- Specification: brass body, stainless steel press sleeve with an inspection window and insulating ring, and factory-fitted EPDM O-rings.
- Rated for heating and water: maximum working pressure 10 bar and maximum continuous temperature 80°C (95°C peak). Suitable for heating, underfloor heating and hot and cold water.
Pack sizes
| Size | Bag | Box |
|---|---|---|
| 16mm x 1/2" | 6 | 24 |
| 20mm x 1/2" | 6 | 24 |
| 20mm x 3/4" | 5 | 15 |
| 25mm x 3/4" | 5 | 10 |
| 32mm x 1" | 2 | 6 |
Sold in full bags or boxes only, in the supplier's pack quantities. Choose a bag or a box, then how many packs you need. Packs are not split.
How to fit it
Cut the pipe square. Calibrate and bevel the bore with a Pipe Reaming Tool or Pipe Chamfering Tool. Push the pipe fully home until it shows in the inspection window, then press with the U-profile jaw that matches the pipe size. Seal the BSP thread with PTFE tape or a thread sealing cord.
Works with
- MLCP Press Fit Female Elbow for male-threaded connections
- MLCP Press Fit Male Straight Union for straight connections
- U-Profile Press Jaws
- MLCP Fittings
Questions
Male or female, which do I need?
Pick male if the valve or fitting you're connecting into has a female (internal) thread.
Are packs split?
No. These come in full bags or boxes only.
Order by 12pm, Monday to Friday, for next working day UK delivery.
Product codes: MHF5-L1216x12-BAG6, MHF5-L1216x12-BOX24, MHF5-L1620x12-BAG6, MHF5-L1620x12-BOX24, MHF5-L1620x34-BAG5, MHF5-L1620x34-BOX15, MHF5-L2025x34-BAG5, MHF5-L2025x34-BOX10, MHF5-L2632x1-BAG2, MHF5-L2632x1-BOX6
Specifications
| Brand | MaxHeatUFH |
|---|---|
| Code | MHF5-L1216x12-BAG6 |
| Type | MLCP Fitting |
| Size | 16mm x 1/2", 20mm x 1/2", 20mm x 3/4", 25mm x 3/4", 32mm x 1" |
| Pack | Bag, Box |
