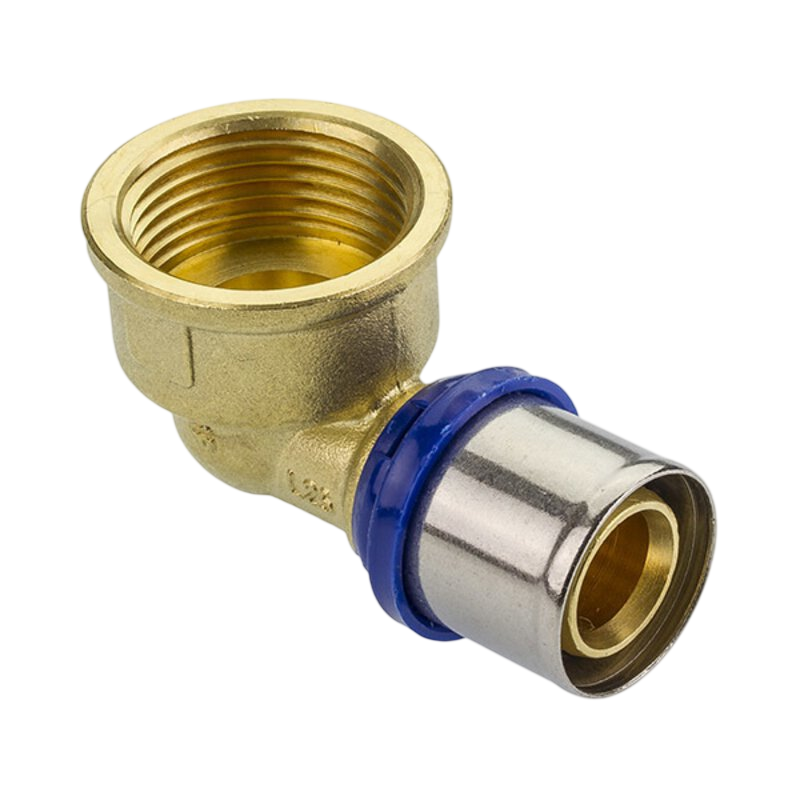

MLCP Press Fit Female Elbow
Product details
An MLCP press fit female elbow is a 90 degree fitting with a press end for multilayer pipe (MLCP or PEX-AL-PEX) and a female BSP thread. Use it to connect onto male-threaded valves, manifold connections, pumps and appliance tails where the pipe arrives at a right angle.
Why installers use it
- Seven sizes: 16mm to 32mm pipe with 1/2", 3/4" or 1" female BSP.
- Neat at the manifold: turns and connects in one fitting.
- Specification: brass body, stainless steel press sleeve with an inspection window and insulating ring, and factory-fitted EPDM O-rings.
- Rated for heating and water: maximum working pressure 10 bar and maximum continuous temperature 80°C (95°C peak). Suitable for heating, underfloor heating and hot and cold water.
Pack sizes
| Size | Bag | Box |
|---|---|---|
| 16mm x 1/2" | 5 | 20 |
| 16mm x 3/4" | 5 | 15 |
| 20mm x 1/2" | 6 | 18 |
| 20mm x 3/4" | 5 | 15 |
| 25mm x 3/4" | 4 | 12 |
| 25mm x 1" | 4 | 8 |
| 32mm x 1" | 2 | 6 |
Sold in full bags or boxes only, in the supplier's pack quantities. Choose a bag or a box, then how many packs you need. Packs are not split.
How to fit it
Cut the pipe square. Calibrate and bevel the bore with a Pipe Reaming Tool or Pipe Chamfering Tool. Push the pipe fully home until it shows in the inspection window, then press with the U-profile jaw that matches the pipe size. Seal the BSP thread with PTFE tape or a thread sealing cord.
Works with
- MLCP Press Fit Swivel Female Elbow for joints that need to come apart
- MLCP Press Fit Male Elbow
- U-Profile Press Jaws
- MLCP Fittings
Questions
Does the thread swivel?
No, the thread is fixed. If you need a loose nut, use the swivel female elbow.
Can I buy single elbows?
No. Full bags or boxes only.
Order by 12pm, Monday to Friday, for next working day UK delivery.
Product codes: MHF5-L1216x12F-BAG5, MHF5-L1216x12F-BOX20, MHF5-L1216x34F-BAG5, MHF5-L1216x34F-BOX15, MHF5-L1620x12F-BAG6, MHF5-L1620x12F-BOX18, MHF5-L1620x34F-BAG5, MHF5-L1620x34F-BOX15, MHF5-L2025x34F-BAG4, MHF5-L2025x34F-BOX12, MHF5-L2025x1F-BAG4, MHF5-L2025x1F-BOX8, MHF5-L2632x1F-BAG2, MHF5-L2632x1F-BOX6
Specifications
| Brand | MaxHeatUFH |
|---|---|
| Code | MHF5-L1216x12F-BAG5 |
| Type | MLCP Fitting |
| Size | 16mm x 1/2", 16mm x 3/4", 20mm x 1/2", 20mm x 3/4", 25mm x 3/4", 25mm x 1", 32mm x 1" |
| Pack | Bag, Box |
