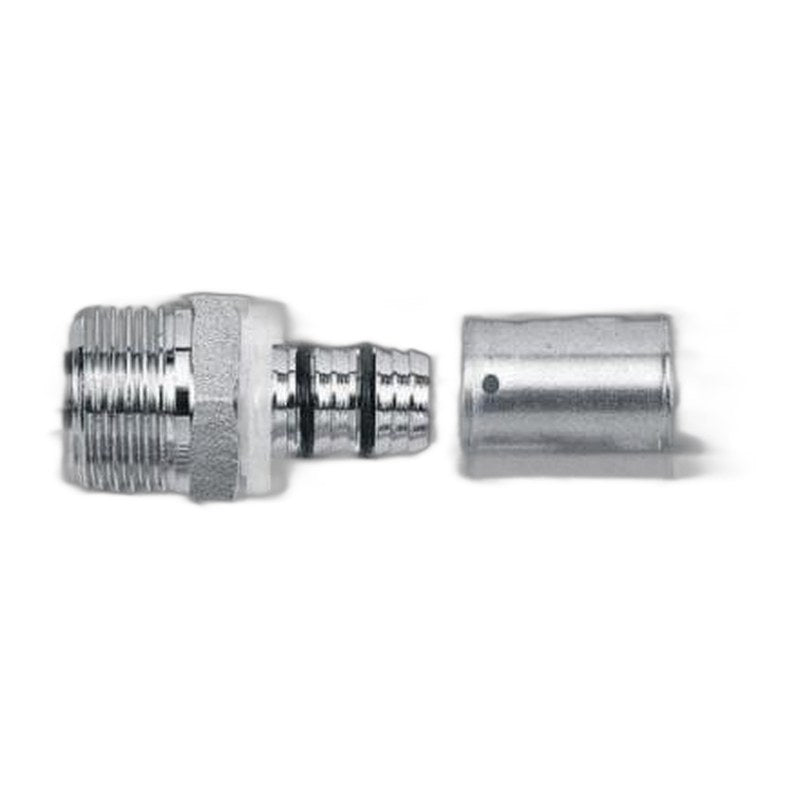

MLCP Press Fit Male Straight Union
Product details
An MLCP press fit male straight union takes multilayer pipe (MLCP or PEX-AL-PEX) on one end and a male BSP thread on the other. Use it to connect into female-threaded valves, manifolds, cylinders and boiler connections. The press end is U-profile.
Why installers use it
- Pipe to thread in one fitting: 16, 20, 25 and 32mm pipe with 1/2", 3/4" or 1" male BSP.
- Specification: brass body, stainless steel press sleeve with an inspection window and insulating ring, and factory-fitted EPDM O-rings.
- Rated for heating and water: maximum working pressure 10 bar and maximum continuous temperature 80°C (95°C peak). Suitable for heating, underfloor heating and hot and cold water.
- No turning the press joint: screw the thread in first, then press the pipe on.
Pack sizes
| Size | Bag | Box |
|---|---|---|
| 16mm x 1/2" | 10 | 40 |
| 16mm x 3/4" | 5 | 25 |
| 20mm x 1/2" | 5 | 35 |
| 20mm x 3/4" | 5 | 25 |
| 25mm x 1/2" | 5 | 15 |
| 25mm x 3/4" | 5 | 15 |
| 25mm x 1" | 5 | 15 |
| 32mm x 3/4" | 4 | 12 |
| 32mm x 1" | 4 | 12 |
Sold in full bags or boxes only, in the supplier's pack quantities. Choose a bag or a box, then how many packs you need. Packs are not split.
How to fit it
Cut the pipe square. Calibrate and bevel the bore with a Pipe Reaming Tool or Pipe Chamfering Tool. Push the pipe fully home until it shows in the inspection window, then press with the U-profile jaw that matches the pipe size. Seal the BSP thread with PTFE tape or a thread sealing cord.
Works with
- U-Profile Press Jaws and Electric Hydraulic Press Tool Set
- MLCP Press Fit Female Straight Union for male-threaded connections
- Ball Valves
- MLCP Fittings
Questions
Which thread is it?
A male BSP thread: 1/2", 3/4" or 1" depending on the size you pick.
Can I buy single fittings?
No. They're sold in full bags or boxes, as our supplier packs them.
Order by 12pm, Monday to Friday, for next working day UK delivery.
Product codes: MHF5-S1216x12-BAG10, MHF5-S1216x12-BOX40, MHF5-S1216x34-BAG5, MHF5-S1216x34-BOX25, MHF5-S1620x12-BAG5, MHF5-S1620x12-BOX35, MHF5-S1620x34-BAG5, MHF5-S1620x34-BOX25, MHF5-S2025x12-BAG5, MHF5-S2025x12-BOX15, MHF5-S2025x34-BAG5, MHF5-S2025x34-BOX15, MHF5-S2025x1-BAG5, MHF5-S2025x1-BOX15, MHF5-S2632x34-BAG4, MHF5-S2632x34-BOX12, MHF5-S2632x1-BAG4, MHF5-S2632x1-BOX12
Specifications
| Brand | MaxHeatUFH |
|---|---|
| Code | MHF5-S1216x12-BAG10 |
| Type | MLCP Fitting |
| Size | 16mm x 1/2", 16mm x 3/4", 20mm x 1/2", 20mm x 3/4", 25mm x 1/2", 25mm x 3/4", 25mm x 1", 32mm x 3/4", 32mm x 1" |
| Pack | Bag, Box |
