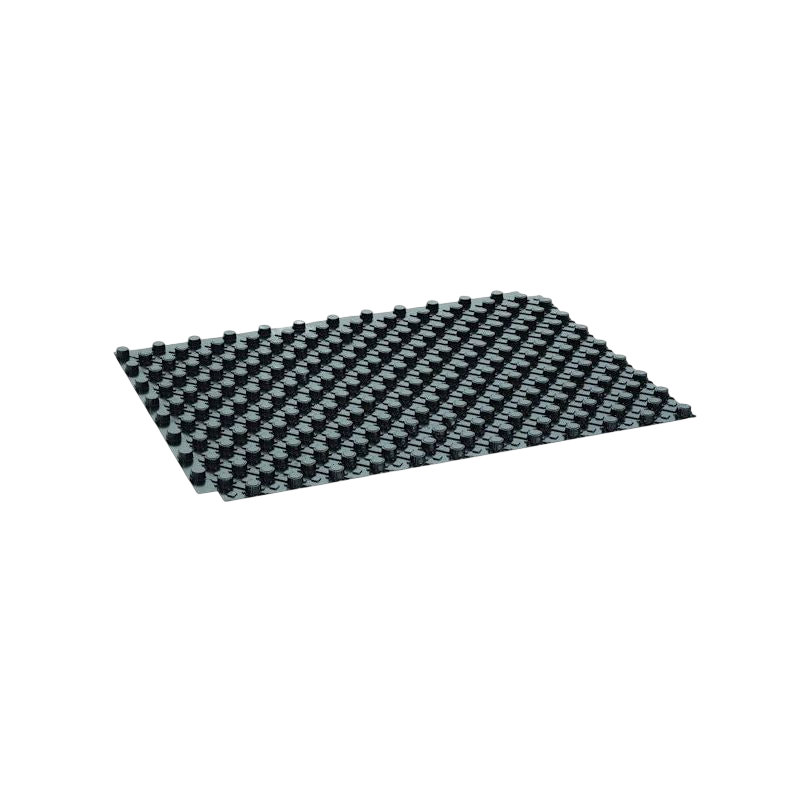

MaxHeatUFH Castellated Floor Panel 1220 x 820mm
Product details
This castellated floor panel makes pipe laying fast on wet underfloor heating jobs that are finished with screed or self-levelling compound. The pipe pushes in between the raised bosses, so there are no clips to fix. The 20mm panel takes 15, 16 or 17mm pipe, and each sheet is 1220 x 820mm.
Why installers use it
- No clips needed: the castellated pattern holds the pipe in place.
- Fits three pipe sizes: 15, 16 or 17mm pipe.
- Under screed or levelling compound: the panel holds the pipe while the floor is poured.
- Large sheets: 1220 x 820mm, so fewer panels to lay.
Specification
| Item | Detail |
|---|---|
| Sheet size | 1220 x 820mm |
| Panel | 20mm |
| Pipe | 15, 16 or 17mm |
| Code | MaxHeatCrate-20 |
Works with
- MaxHeatSolo Egg Crate Panel for 12mm pipe
- Edge Insulation Foam Roll for the room perimeter
- 5-Layer PERT-EVOH UFH Pipe 16mm
- All castellated panels
Questions
Which pipe fits?
15mm, 16mm or 17mm UFH pipe. For 12mm pipe, use the MaxHeatSolo egg crate panel.
What do I finish it with?
Screed or self-levelling compound, poured over the panel once the pipe is in.
Order by 12pm, Monday to Friday, for next working day UK delivery.
Product codes: MaxHeatCrate-20
Specifications
| Brand | MaxHeatUFH |
|---|---|
| Code | MaxHeatCrate-20 |
| Type | UFH Panel |
| Pipe size | 20mm panel (15/16/17mm pipe) |
