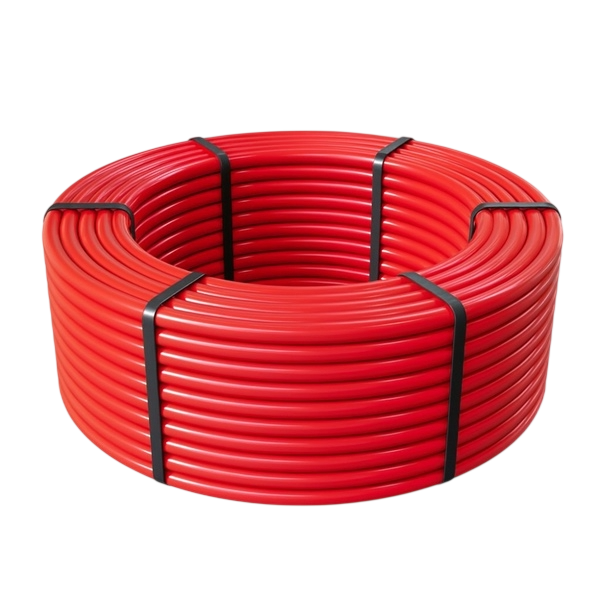

5-Layer PERT-EVOH Oxygen Barrier UFH Pipe 16mm
Product details
A 16mm x 2.0mm 5-layer PERT-EVOH underfloor heating pipe with the EVOH oxygen barrier sealed inside the pipe wall (PERT, adhesive, EVOH, adhesive, PERT). The outer PERT layer protects the barrier, so it can't be scuffed or cracked on site. On 3-layer pipe the EVOH sits on the outside.
Why installers use it
- Protected barrier: the better choice for screeds, notched panels and jobs where pipe is dragged across the floor.
- Oxygen tight to DIN 4726: keeps oxygen out of the system.
- Metre-marked coils: easy to measure each loop as you lay it.
- Boiler or heat pump: suits wet screed, castellated, overlay and floating floor systems.
Specification
| Item | Detail |
|---|---|
| Size | 16mm OD x 2.0mm wall |
| Material | PERT Type II, central EVOH barrier |
| Max. pressure | 6 bar at 70°C, 10 bar at 20°C |
| Temperature | Up to 70°C, short-term peak 95°C |
| Coils | 200m, 400m |
Works with
- Eurocone Connector Cores 3/4" (16 x 2.0)
- 3-Layer PERT-EVOH UFH Pipe, the standard version
- Castellated panels
- Pipe Decoiler
Questions
Why choose 5-layer over 3-layer?
The oxygen barrier is inside the wall, so it is protected from scuffs and cracks during the install.
Which fittings does it take?
16 x 2.0 Eurocone cores, compression or press fittings.
Order by 12pm, Monday to Friday, for next working day UK delivery. Trade accounts available.
Product codes: MHP5-1216-200-R, MHP5-1216-400-R
Specifications
| Brand | MaxHeatUFH |
|---|---|
| Code | MHP5-1216-200-R |
| Type | UFH Pipe |
| Size | 16mm x 200m, 16mm x 400m |
