Manifold Ball Valve Set 1"
Product details

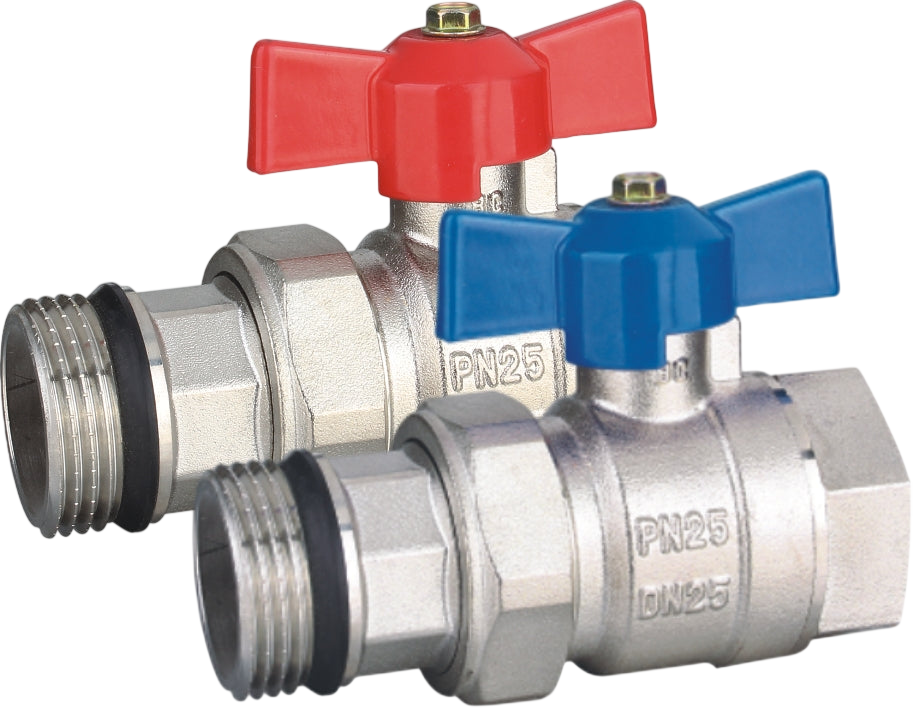

A pair of 1" full-bore ball valves for isolating an underfloor heating manifold from the pump and blending unit or the primary pipework. The red handle marks the flow and the blue handle marks the return, so it's clear which is which.
Why installers use it
- Full bore: no restriction to flow when open.
- Four types: pick the body and connections that suit the install.
- Built to last: nickel-plated brass with PTFE seats, rated to 10 bar and 110°C.
- Service without draining: close both valves to work on the manifold or pump.
Types
| Type | What it is | Code |
|---|---|---|
| Standard red and blue | 1" female x 1" male | MHM-BV-1x2 |
| With temperature gauges | Dial thermometers read flow and return | MHM-BV-1x2-TG |
| Angled with gauges | 90° body for pipes from below | MHM-BV-1x2-ATG |
| Female x female | 1" female both ends | MHM-BV-1x2-FF |
Works with
- Dualmix Stainless Steel Manifold
- Auto-Balancing Stainless Steel UFH Manifold
- 3/4" Ball Valve Set for Blending Valve
- All ball valves
Questions
Is it a pair?
Yes. You get two valves, one red and one blue.
Which type should I choose?
The standard set suits most jobs. Choose the gauge versions to read flow and return temperatures, or the angled one when the pipes come up from below.
Order by 12pm, Monday to Friday, for next working day UK delivery. Trade accounts available.
Product codes: MHM-BV-1x2, MHM-BV-1x2-TG, MHM-BV-1x2-ATG, MHM-BV-1x2-FF
Specifications
| Brand | MaxHeatUFH |
|---|---|
| Code | MHM-BV-1x2 |
| Type | Manifold Component |
| Type | Standard Red & Blue Handles, With Temperature Gauges, Angled with Temperature Gauges, Female x Female |
Delivery & returns
Next working day delivery on UK mainland orders placed by 12pm, Monday to Friday. Delivery is calculated at checkout. See our delivery and shipping policy and returns policy.
Need help choosing?
Try our MaxHeatUFH ProLoop to design and price your floor, or email sales@maxheatufh.com with your floor plan.
