Eurocone Connector Cores 3/4"
Product details

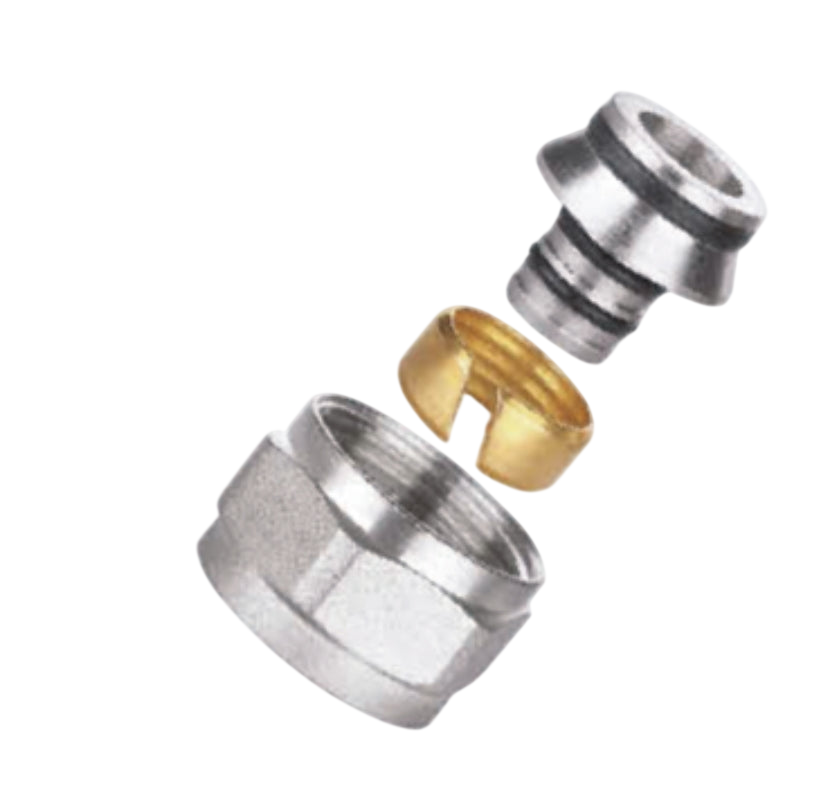

3/4" Eurocone connector cores join underfloor heating and multilayer pipe to 3/4" Eurocone manifold outlets, splitters and adaptors. Each core is a nut, a split olive and a pipe insert. Pick the core that matches your pipe's outside diameter and wall thickness.
Why installers use it
- Eight pipe sizes: from 10 x 1.3mm up to 20 x 2.0mm.
- Nickel-plated brass: a clean, tidy finish at the manifold.
- Sold individually: buy exactly what the job needs.
Sizes
| Pipe size | Code |
|---|---|
| 10 x 1.3mm | MHF1-C0710x3/4A |
| 12 x 1.6mm | MHF1-C0912x3/4A |
| 12 x 2.0mm | MHF1-C0812x3/4A |
| 15 x 2.0mm | MHF1-C1115x3/4A |
| 16 x 1.5mm | MHF1-C1316x3/4A |
| 16 x 2.0mm | MHF1-C1216x3/4A |
| 17 x 2.0mm | MHF1-C1317x3/4A |
| 20 x 2.0mm | MHF1-C1620x3/4A |
How many do I need?
Two per circuit: one for the flow and one for the return. A 6 port manifold with six loops needs 12 cores.
Works with
- Dualmix Stainless Steel Manifold
- Auto-Balancing Stainless Steel UFH Manifold
- PERT-AL-PERT Multilayer UFH Pipe
- 3-Layer PERT-EVOH UFH Pipe
Questions
How do I pick the right core?
Check the pipe's outside diameter and wall thickness, usually printed on the pipe, for example 16 x 2.0. Choose the core with the same figures.
Can I buy single cores?
Yes. They are sold individually.
Order by 12pm, Monday to Friday, for next working day UK delivery. Trade accounts available.
Product codes: MHF1-C1216x3/4A, MHF1-C0912x3/4A, MHF1-C0710x3/4A, MHF1-C0812x3/4A, MHF1-C1115x3/4A, MHF1-C1316x3/4A, MHF1-C1317x3/4A, MHF1-C1620x3/4A
Specifications
| Brand | MaxHeatUFH |
|---|---|
| Code | MHF1-C1216x3/4A |
| Type | Manifold Component |
| Pipe size | 16mm (16 x 2.0), 12mm (12 x 1.6), 10mm (10 x 1.3), 12mm (12 x 2.0), 15mm (15 x 2.0), 16mm (16 x 1.5), 17mm (17 x 2.0), 20mm (20 x 2.0) |
