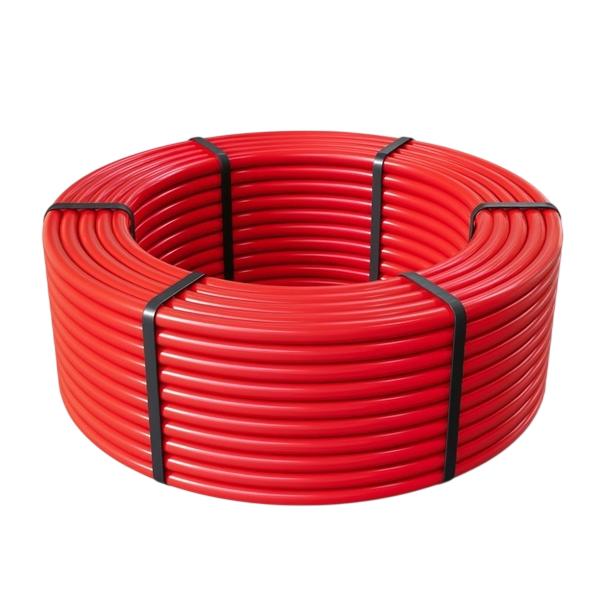

3-Layer PERT-EVOH Oxygen Barrier UFH Pipe
Product details
A 3-layer PERT-EVOH underfloor heating pipe with an external EVOH oxygen barrier (PERT, adhesive, EVOH). It's flexible, cost-effective and easy to lay. The long coils mean fewer joints in the floor.
Why installers use it
- Good value: a cost-effective pipe for most wet UFH jobs.
- Oxygen tight to DIN 4726: the EVOH layer keeps oxygen out of the system.
- Long coils: up to 500m in 16mm, so most loops are one length.
- Easy to connect: use Eurocone cores, compression or press fittings of the same size.
Coil sizes
| Pipe | Coils |
|---|---|
| 10 x 1.3mm | 80m, 240m |
| 12 x 2.0mm | 80m, 320m |
| 16 x 2.0mm | 100m, 200m, 240m, 400m, 500m |
| 20 x 2.0mm | 300m |
3-layer or 5-layer?
On this pipe the EVOH barrier is on the outside. If the pipe will be dragged across the floor or laid in screed or notched panels, the 5-Layer PERT-EVOH pipe has the barrier sealed inside the wall instead.
Works with
Questions
What pressure and temperature is it rated to?
6 bar at 70°C, with a short-term peak of 95°C.
How do I connect it to the manifold?
With a 3/4" Eurocone connector core in the same size, for example 16 x 2.0.
Order by 12pm, Monday to Friday, for next working day UK delivery. Trade accounts available.
Product codes: MHP4-0912-80-R, MHP4-0912-320-R, MHP4-1216-100-R, MHP4-1216-200-R, MHP4-1216-240-R, MHP4-1216-400-R, MHP4-1216-500-R, MHP4-0710-80-R, MHP4-0710-240-R, MHP4-1620-300-R
Specifications
| Brand | MaxHeatUFH |
|---|---|
| Code | MHP4-0912-80-R |
| Type | UFH Pipe |
| Size | 12mm x 80m, 12mm x 320m, 16mm x 100m, 16mm x 200m, 16mm x 240m, 16mm x 400m, 16mm x 500m, 10mm x 80m, 10mm x 240m, 20mm x 300m |
