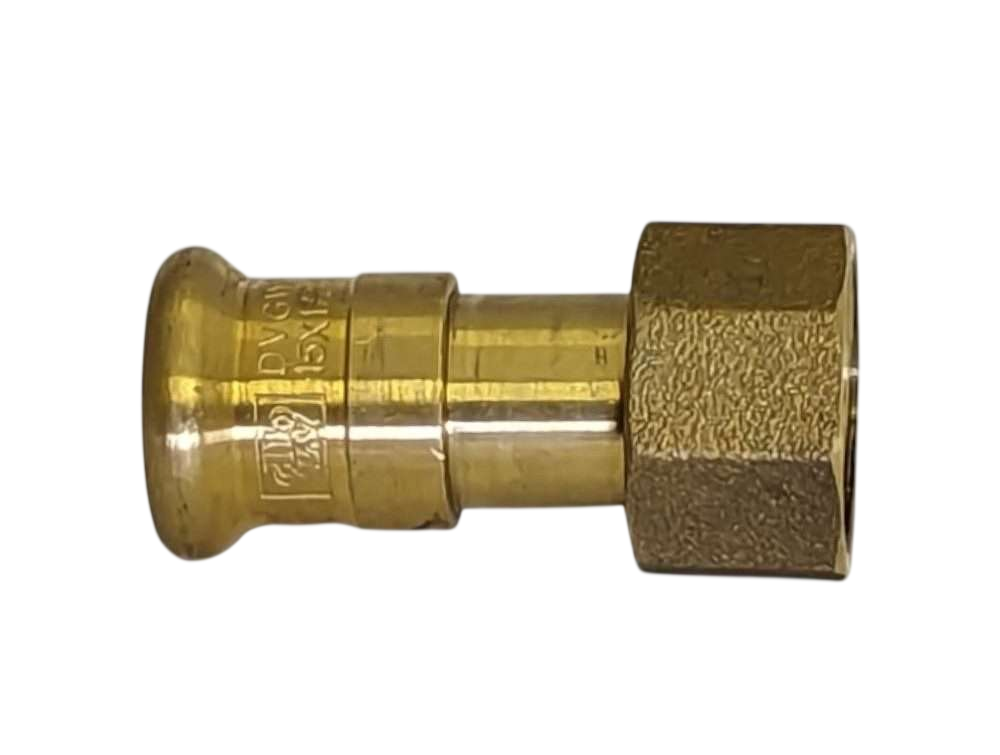

Copper M-Press Tap Connector
Product details
A copper M-press tap connector joins copper tube to a tap tail or other male threaded outlet. Press the tube end and do up the threaded end onto the tail. It comes in five sizes, from 15mm x 1/2" for basin and sink taps up to 28mm x 1 1/4".
Why installers use it
- Taps and outlets: a quick tube to tail connection at basins, sinks and appliances.
- Five sizes: 15mm x 1/2", 15mm x 3/4", 22mm x 3/4", 22mm x 1" and 28mm x 1 1/4".
- No flame under sinks: pressed cold, so no torch in tight cupboards.
- Full packs: bag or box. Packs are not split.
Pack sizes
| Size | Bag | Box |
|---|---|---|
| 15mm x 1/2" | 10 | 120 |
| 15mm x 3/4" | 10 | 150 |
| 22mm x 3/4" | 10 | 80 |
| 22mm x 1" | 10 | 100 |
| 28mm x 1 1/4" | 5 | 70 |
Choosing the size
Match the first number to your copper tube and the second to the thread on the tap tail or outlet.
Works with
- Copper M-Press Female Wall Plated Elbow
- Copper M-Press Lever Ball Valve
- MaxHeatUFH M-Profile Press Jaws and the Electric Hydraulic Press Tool Set
- Copper M-Press Fittings
Questions
Will it work with my press tool?
Yes, if your tool takes M-profile jaws in 15, 22 or 28mm. Both MaxHeatUFH electric hydraulic tools do.
Can I buy single fittings?
No. Our supplier does not split packs, so we sell full bags and boxes only.
Order by 12pm, Monday to Friday, for next working day UK delivery.
Product codes: MHF9-S15x1/2TC-BAG10, MHF9-S15x1/2TC-BOX120, MHF9-S15x3/4TC-BAG10, MHF9-S15x3/4TC-BOX150, MHF9-S22x3/4TC-BAG10, MHF9-S22x3/4TC-BOX80, MHF9-S22x1TC-BAG10, MHF9-S22x1TC-BOX100, MHF9-S28x1-1/4TC-BAG5, MHF9-S28x1-1/4TC-BOX70
Specifications
| Brand | MaxHeatUFH |
|---|---|
| Code | MHF9-S15x1/2TC-BAG10 |
| Type | Copper M-Press Fitting |
| Size | 15mm x 1/2", 15mm x 3/4", 22mm x 3/4", 22mm x 1", 28mm x 1 1/4" |
| Pack | Bag, Box |
