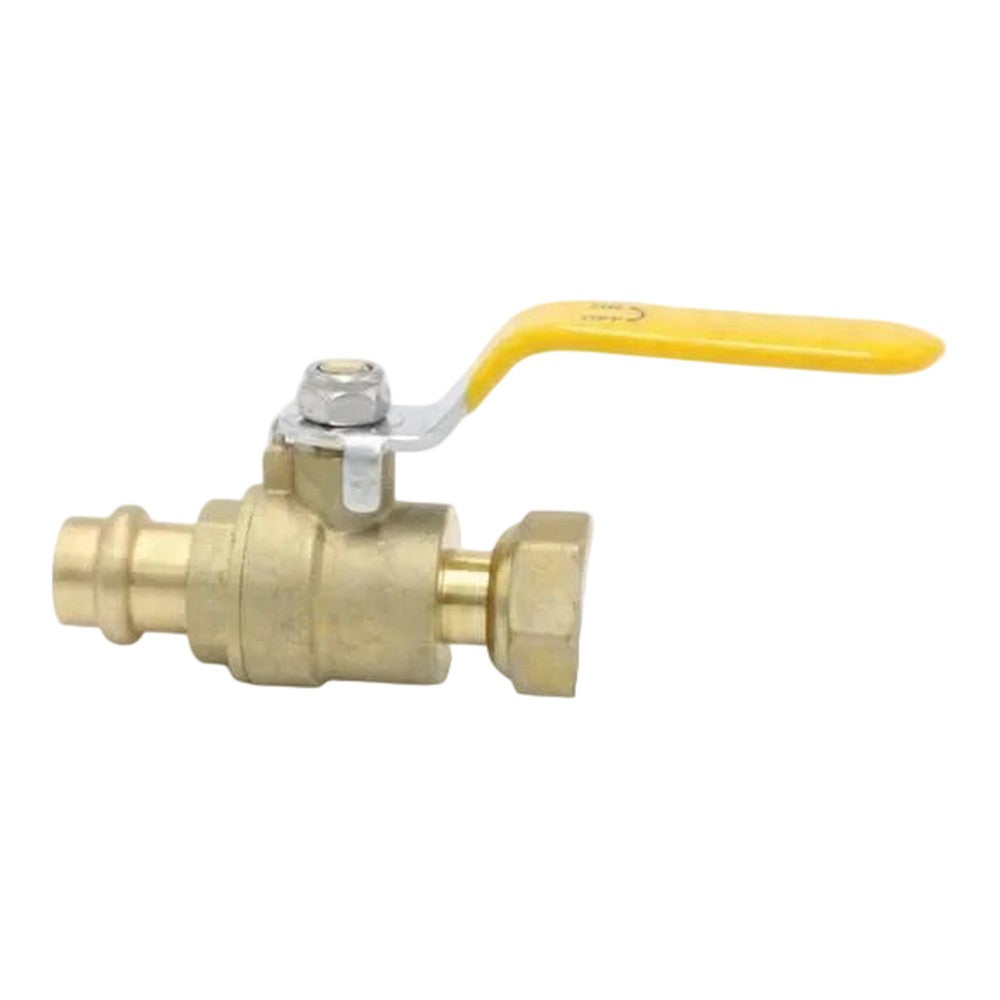

Copper M-Press Lever Ball Valve with Female Connection
Product details
This copper M-press lever ball valve has a press end on one side and a female thread on the other. It lets you isolate straight onto a male threaded part, such as a pump, manifold, cylinder or appliance connection, without a separate adaptor. Red or blue handle, in four sizes from 15mm x 1/2" to 35mm x 1 1/4".
Why installers use it
- Valve and adaptor in one: press to tube, thread to the equipment.
- Colour coded: red or blue lever handle.
- Four sizes: 15mm x 1/2", 22mm x 3/4", 28mm x 1" and 35mm x 1 1/4".
- Full packs: bags of 2 in 15mm and 22mm. 28mm and 35mm are box only.
Pack sizes (each colour)
| Size | Bag | Box |
|---|---|---|
| 15mm x 1/2" | 2 | 54 |
| 22mm x 3/4" | 2 | 36 |
| 28mm x 1" | – | 24 |
| 35mm x 1 1/4" | – | 18 |
Works with
- Copper M-Press Lever Ball Valve (press both ends)
- Copper M-Press Straight Union MI
- Ball Valves and Copper M-Press Fittings
Questions
Which way round does it go?
The female thread goes onto the male threaded part. The press end goes onto copper tube of the first size listed.
Can I buy a single valve?
No. The smallest pack is a bag of 2, and packs are not split.
Order by 12pm, Monday to Friday, for next working day UK delivery.
Product codes: MHF9-LBV15x1/2FR-BAG2, MHF9-LBV15x1/2FR-BOX54, MHF9-LBV15x1/2FB-BAG2, MHF9-LBV15x1/2FB-BOX54, MHF9-LBV22x3/4FR-BAG2, MHF9-LBV22x3/4FR-BOX36, MHF9-LBV22x3/4FB-BAG2, MHF9-LBV22x3/4FB-BOX36, MHF9-LBV28x1FR-BOX24, MHF9-LBV28x1FB-BOX24, MHF9-LBV35x1-1/4FR-BOX18, MHF9-LBV35x1-1/4FB-BOX18
Specifications
| Brand | MaxHeatUFH |
|---|---|
| Code | MHF9-LBV15x1/2FR-BAG2 |
| Type | Copper M-Press Fitting |
| Size | 15mm x 1/2", 22mm x 3/4", 28mm x 1", 35mm x 1 1/4" |
| Handle colour | Red, Blue |
| Pack | Bag, Box |
