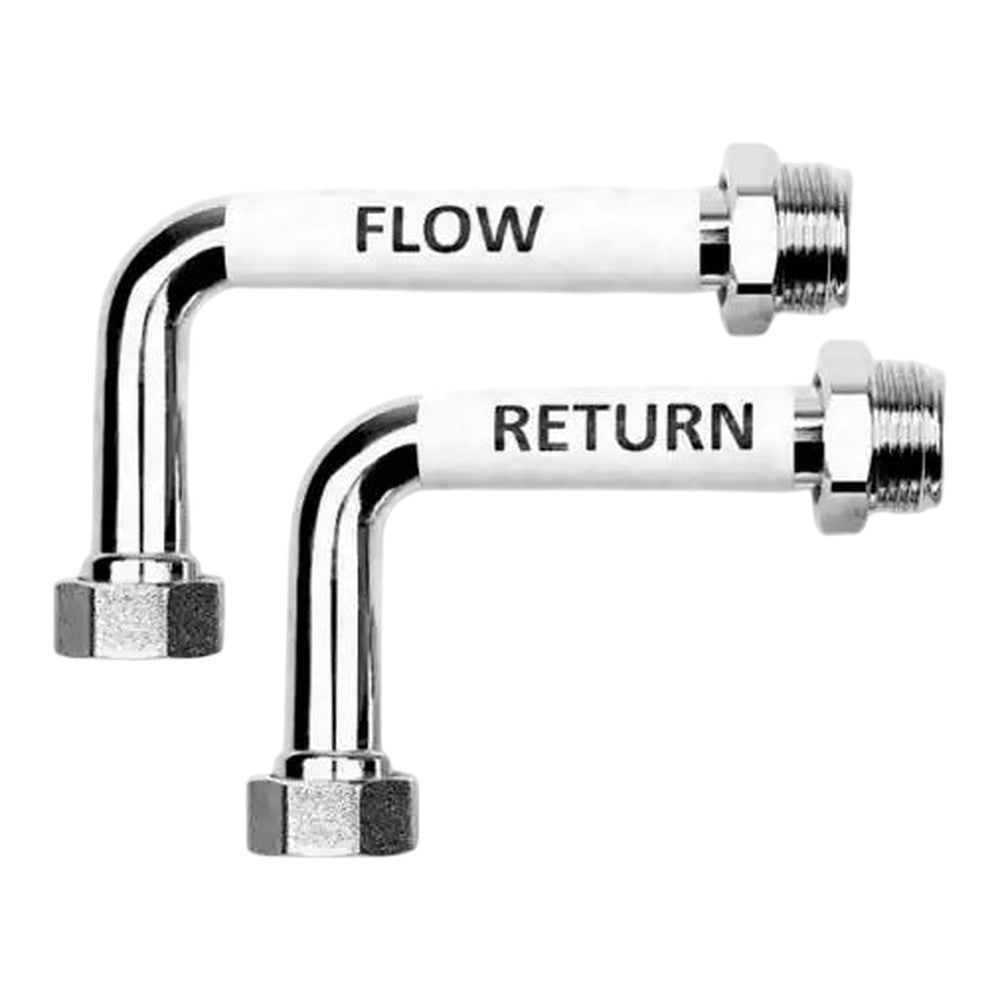

UFH Manifold 90° Elbow Connector Set 1"
Product details
A 90° elbow connection set for underfloor heating manifolds. It lets you mount the pump and blending (mixing) unit at right angles to the manifold, for example with the pump set on one wall and the manifold on the next, or around a corner in a cupboard. No extra pipework is needed.
Why installers use it
- Fits tight cupboards: turn the corner without extra pipework.
- Flow and return covered: one set does both connections.
- Swivel union nuts: flat-faced 1" BSP joints that are easy to line up.
Specification
| Item | Detail |
|---|---|
| Connections | 1" BSP, flat-faced, swivel union nut |
| Covers | Flow and return |
| Material | Nickel-plated brass |
Works with
- Blending valve pump pack with Grundfos UPM3 Auto
- Dualmix Stainless Steel Manifold
- Auto-Balancing Stainless Steel UFH Manifold
- Pumps, actuators and valves
Questions
Will it fit my pump pack?
It fits our manifolds and pump or blending packs with 1" connections.
Is it a pair?
Yes. The set covers both the flow and the return.
Order by 12pm, Monday to Friday, for next working day UK delivery. Trade accounts available.
Product codes: MHM-ELB90-1
