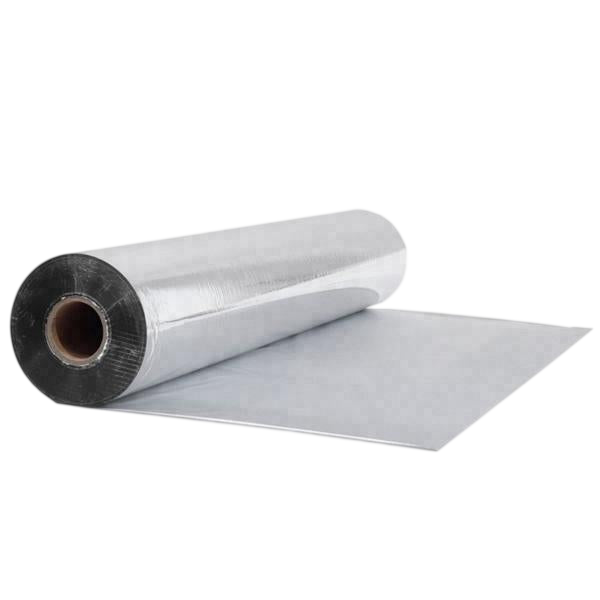

Reflective Aluminium Foil Insulation Roll for Underfloor Heating, 1m x 50m
Product details
A reflective aluminium foil insulation roll for wet underfloor heating, 1m wide by 50m long. Lay it over the subfloor or insulation before the pipe is fixed. The foil face reflects heat upwards into the floor, and the roll acts as a moisture and vapour barrier under screed or overlay systems.
Why installers use it
- Reflects heat upwards: the foil face sends heat into the floor, not down.
- Moisture and vapour barrier: under screed or beneath overlay boards.
- Works with most fixing methods: use under tacker, rail and staple systems.
- 50m² per roll: 1m x 50m.
Specification
| Item | Detail |
|---|---|
| Roll size | 1m x 50m |
| Coverage | 50m² |
| Face | Reflective aluminium foil |
| Code | MH-FOIL-1x50 |
Laying tips
Lap the joints by 50 to 100mm and seal them with aluminium foil tape. Allow for the laps when working out how many rolls you need.
Works with
- Self-Adhesive Pipe Clip Rail
- High Grip Barbed Pipe Clips
- Edge Insulation Foam Roll
- Insulation boards
Questions
How much does a roll cover?
50m², before laps. Overlap joints by 50 to 100mm.
Can I use it under overlay boards?
Yes. It can go beneath overlay boards as well as under tacker, rail and staple systems.
Order by 12pm, Monday to Friday, for next working day UK delivery.
Product codes: MH-FOIL-1x50
Specifications
| Brand | MaxHeatUFH |
|---|---|
| Code | MH-FOIL-1x50 |
| Type | Insulation |
Delivery & returns
Next working day delivery on UK mainland orders placed by 12pm, Monday to Friday. Delivery is calculated at checkout. See our delivery and shipping policy and returns policy.
Need help choosing?
Try our MaxHeatUFH ProLoop to design and price your floor, or email sales@maxheatufh.com with your floor plan.
