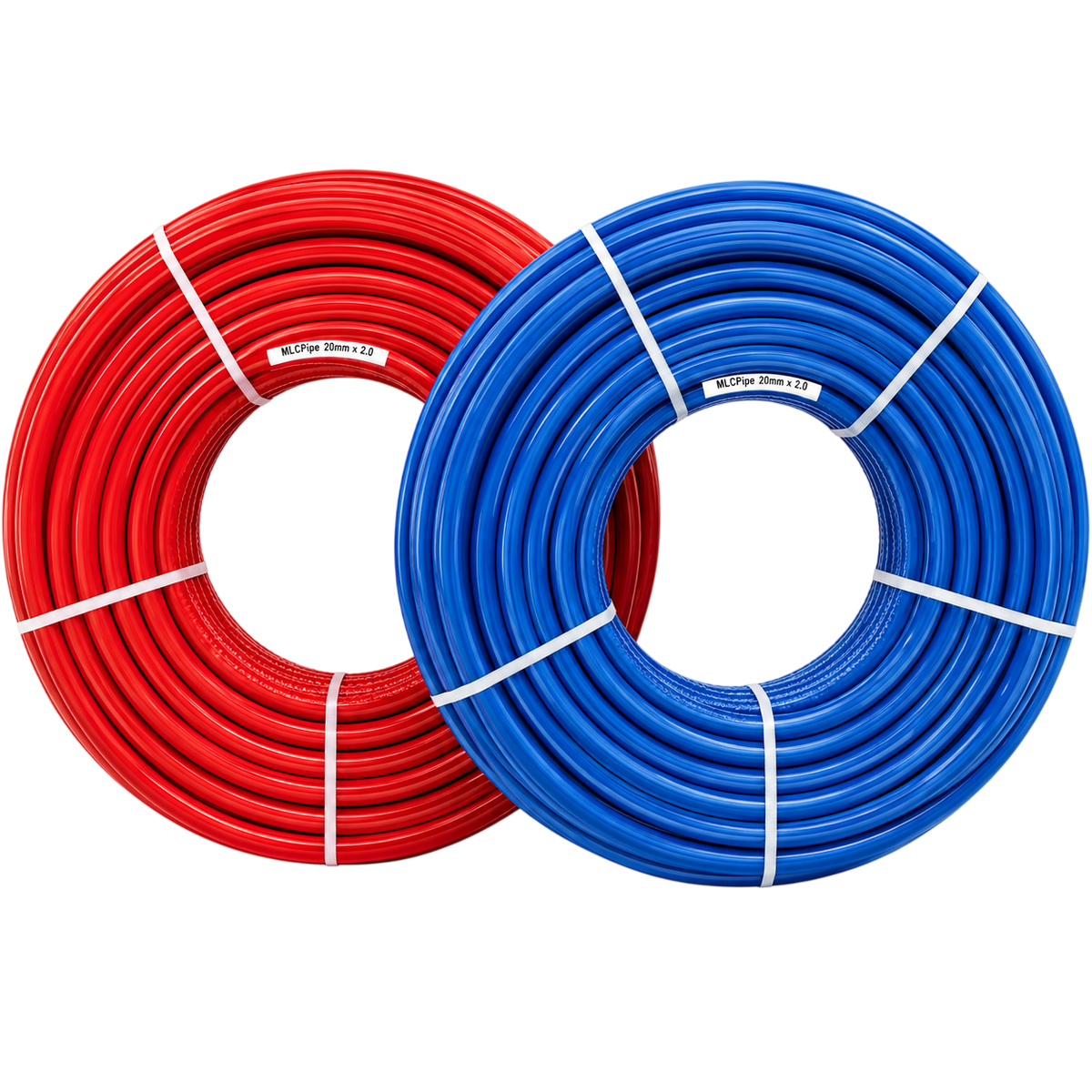

Pre-Insulated PEX-AL-PEX Multilayer Pipe
Product details
Pre-insulated PEX-AL-PEX multilayer pipe for flow and return runs, for example from the boiler or heat pump to the underfloor heating manifold. The insulation comes already fitted, red for flow and blue for return, so there's no separate lagging to fit.
Why installers use it
- Ready insulated: saves fitting pipe lagging on site.
- Colour coded: red for flow, blue for return.
- Four sizes: 16mm, 20mm, 25mm and 32mm.
- Multilayer core: PEX-AL-PEX holds its shape when bent.
Coil sizes
| Pipe | Coil | Colours |
|---|---|---|
| 16mm | 100m | Red or blue |
| 20mm | 50m | Red or blue |
| 25mm | 50m | Red or blue |
| 32mm | 25m | Red or blue |
How much do I need?
Measure the run from the heat source to the manifold and order one red coil for the flow and one blue coil for the return.
Works with
Questions
Do I buy red and blue separately?
Yes. Each colour is its own option, so order one of each for a flow and return.
What fittings does it take?
MLCP press fittings in the matching pipe size.
Order by 12pm, Monday to Friday, for next working day UK delivery. Trade accounts available.
Product codes: MHP3-1216-100-B, MHP3-1216-100-R, MHP3-1620-50-B, MHP3-1620-50-R, MHP3-2025-50-B, MHP3-2025-50-R, MHP3-2632-25-R, MHP3-2632-25-B
Specifications
| Brand | MaxHeatUFH |
|---|---|
| Code | MHP3-1216-100-B |
| Type | UFH Pipe |
| Size | 16mm x 100m, 20mm x 50m, 25mm x 50m, 32mm x 25m |
| Colour | Blue, Red |
Delivery & returns
Next working day delivery on UK mainland orders placed by 12pm, Monday to Friday. Delivery is calculated at checkout. See our delivery and shipping policy and returns policy.
Need help choosing?
Try our MaxHeatUFH ProLoop to design and price your floor, or email sales@maxheatufh.com with your floor plan.
