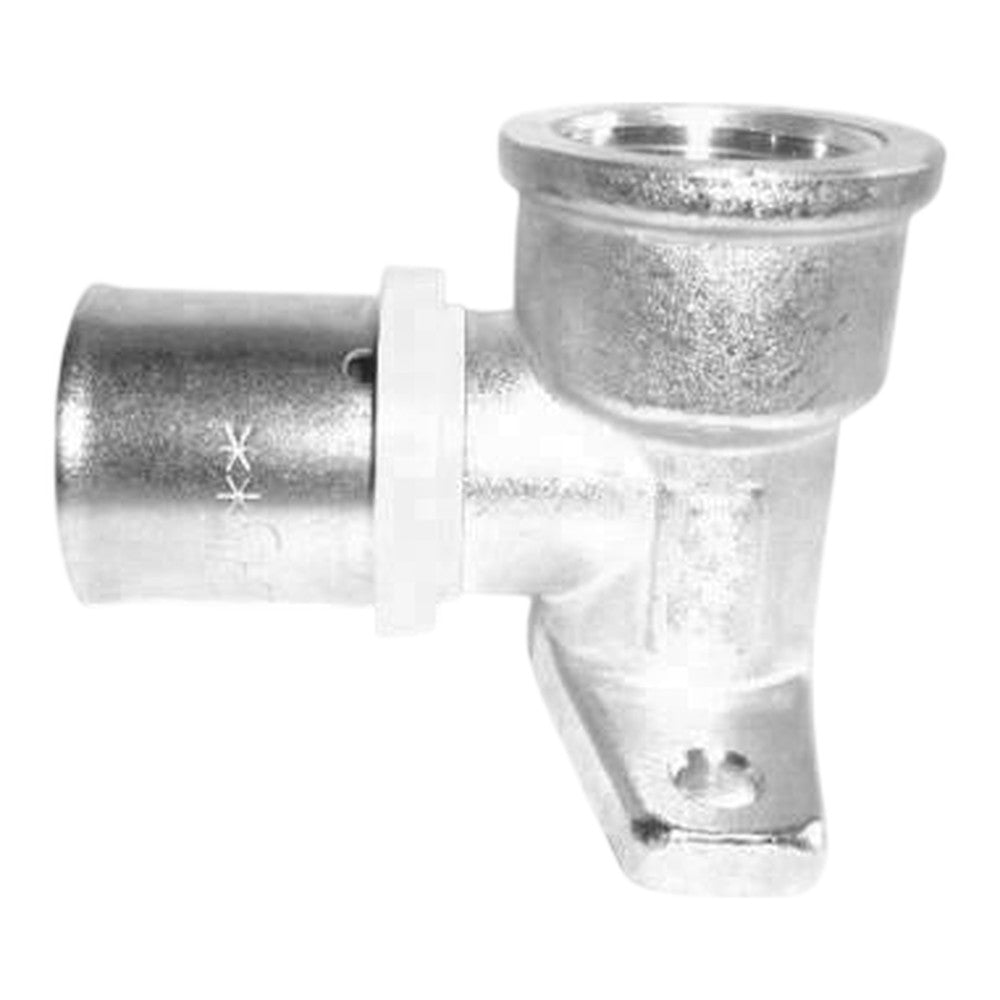

MLCP Press Fit Wall-Plated Female Elbow
Product details
An MLCP press fit wall-plated elbow is a 90 degree elbow with a female BSP outlet and a fixing plate. Screw it to a wall, noggin or back-box to give a solid threaded outlet for taps, showers, outside taps and appliance connections on multilayer pipe (MLCP or PEX-AL-PEX).
Why installers use it
- Solid outlet: the plate holds the thread firm, so the pipe doesn't move when a tap or shower is tightened on.
- Four sizes: 16mm or 20mm pipe with 1/2" or 3/4" female BSP.
- Specification: brass body, stainless steel press sleeve with an inspection window and insulating ring, and factory-fitted EPDM O-rings.
- Rated for heating and water: maximum working pressure 10 bar and maximum continuous temperature 80°C (95°C peak). Suitable for heating, underfloor heating and hot and cold water.
Pack sizes
| Size | Bag | Box |
|---|---|---|
| 16mm x 1/2" | 5 | 10 |
| 16mm x 3/4" | 5 | 10 |
| 20mm x 1/2" | 5 | 10 |
| 20mm x 3/4" | 5 | 10 |
Sold in full bags or boxes only, in the supplier's pack quantities. Choose a bag or a box, then how many packs you need. Packs are not split.
How to fit it
Cut the pipe square. Calibrate and bevel the bore with a Pipe Reaming Tool or Pipe Chamfering Tool. Push the pipe fully home until it shows in the inspection window, then press with the U-profile jaw that matches the pipe size. Seal the BSP thread with PTFE tape or a thread sealing cord.
Works with
- PEX-AL-PEX Multilayer Pipe for hot and cold runs
- U-Profile Press Jaws
- MLCP Press Fit Female Elbow where no plate is needed
- MLCP Fittings
Questions
What can I fix it to?
A wall, a timber noggin or a back-box, using the fixing plate.
Can I buy one for a single tap?
No. They come in bags of 5 or boxes of 10, and packs aren't split.
Order by 12pm, Monday to Friday, for next working day UK delivery.
Product codes: MHF5-L1216x12FZ-BAG5, MHF5-L1216x12FZ-BOX10, MHF5-L1216x34FZ-BAG5, MHF5-L1216x34FZ-BOX10, MHF5-L1620x12FZ-BAG5, MHF5-L1620x12FZ-BOX10, MHF5-L1620x34FZ-BAG5, MHF5-L1620x34FZ-BOX10
Specifications
| Brand | MaxHeatUFH |
|---|---|
| Code | MHF5-L1216x12FZ-BAG5 |
| Type | MLCP Fitting |
| Size | 16mm x 1/2", 16mm x 3/4", 20mm x 1/2", 20mm x 3/4" |
| Pack | Bag, Box |
