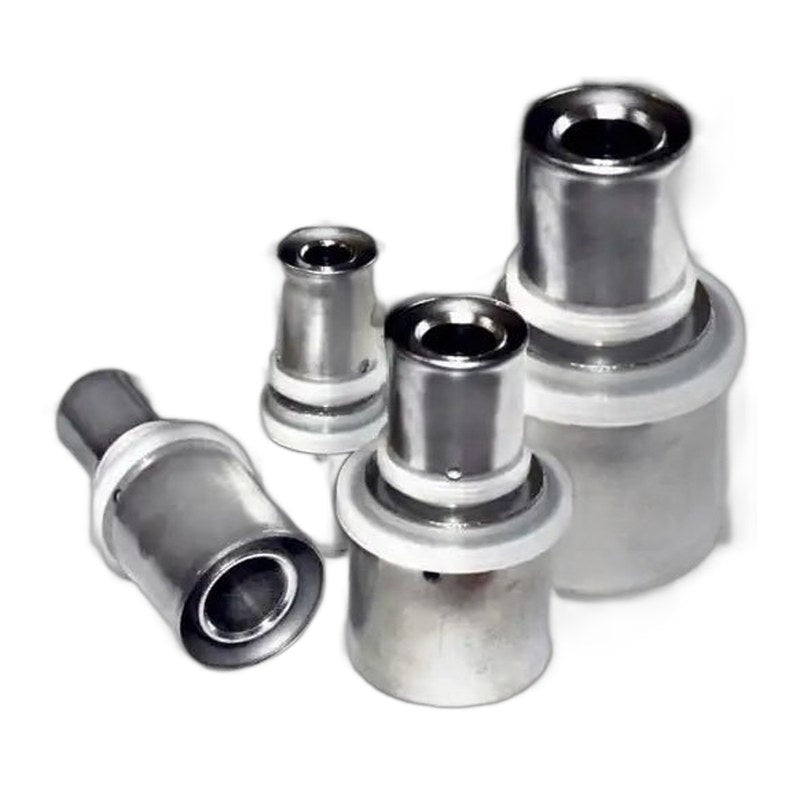

MLCP Press Fit Reducing Straight Connector
Product details
An MLCP press fit reducing connector joins multilayer pipe (MLCP or PEX-AL-PEX) of two different sizes in a straight line. A typical use is stepping a 20mm heating main down to 16mm for an underfloor heating or radiator circuit. Both ends press with U-profile jaws.
Why installers use it
- Six reductions: 20 to 16mm, 25 to 16 or 20mm, and 32 to 16, 20 or 25mm.
- Specification: brass body, stainless steel press sleeve with an inspection window and insulating ring, and factory-fitted EPDM O-rings.
- Rated for heating and water: maximum working pressure 10 bar and maximum continuous temperature 80°C (95°C peak). Suitable for heating, underfloor heating and hot and cold water.
- One less fitting: reduce in a single joint instead of a connector plus a reducer.
Pack sizes
| Size | Bag | Box |
|---|---|---|
| 20mm x 16mm | 5 | 30 |
| 25mm x 16mm | 5 | 15 |
| 25mm x 20mm | 4 | 12 |
| 32mm x 16mm | 5 | 10 |
| 32mm x 20mm | 5 | 10 |
| 32mm x 25mm | 5 | 10 |
Sold in full bags or boxes only, in the supplier's pack quantities. Choose a bag or a box, then how many packs you need. Packs are not split.
How to fit it
Cut the pipe square. Calibrate and bevel the bore with a Pipe Reaming Tool or Pipe Chamfering Tool. Push the pipe fully home until it shows in the inspection window, then press with the U-profile jaw that matches the pipe size.
Choosing the size
Sizes are written large end first. A 25mm x 16mm connector takes 25mm pipe on one end and 16mm pipe on the other. You'll need the U-profile jaw for each size.
Works with
- U-Profile Press Jaws for each pipe size
- MLCP Press Fit Equal Straight Connector for same-size joins
- PERT-AL-PERT Multilayer Pipe
- MLCP Fittings
Questions
Can I buy them one at a time?
No. They come in full bags or boxes only, and we can't split packs.
Do I need two different jaws?
Yes. Press each end with the U-profile jaw for that pipe size.
Order by 12pm, Monday to Friday, for next working day UK delivery.
Product codes: MHF5-S1620x1216-BAG5, MHF5-S1620x1216-BOX30, MHF5-S2025x1216-BAG5, MHF5-S2025x1216-BOX15, MHF5-S2025x1620-BAG4, MHF5-S2025x1620-BOX12, MHF5-S2632x1216-BAG5, MHF5-S2632x1216-BOX10, MHF5-S2632x1620-BAG5, MHF5-S2632x1620-BOX10, MHF5-S2632x2025-BAG5, MHF5-S2632x2025-BOX10
Specifications
| Brand | MaxHeatUFH |
|---|---|
| Code | MHF5-S1620x1216-BAG5 |
| Type | MLCP Fitting |
| Size | 20mm x 16mm, 25mm x 16mm, 25mm x 20mm, 32mm x 16mm, 32mm x 20mm, 32mm x 25mm |
| Pack | Bag, Box |
