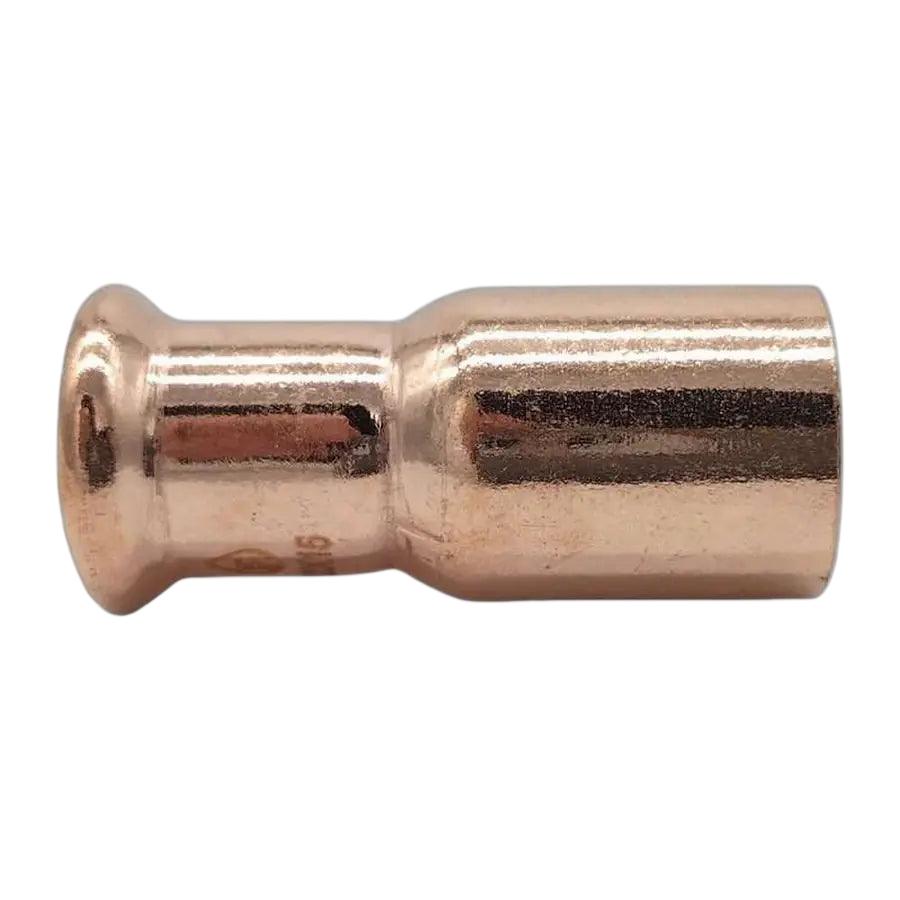

Copper M-Press Fitting Reducer

A copper M-press fitting reducer has a spigot on its large end that pushes into another press fitting, and a press socket on its small end for tube. Use it to reduce straight off a tee, elbow or valve without a separate length of tube. There are 12 sizes from 22-15mm to 54-42mm.

Why installers use it

• Reduce at the fitting: the spigot goes into a tee or elbow, so the size change sits tight to it.
• Saves space and joints: no short piece of the larger tube needed.
• Includes 54-22mm: a big step down for mains and plant room branches.
• Full packs only: bag or box. Our supplier does not split packs.

Pack sizes

Choosing the size

The first number is the spigot (large) end and the second is the tube (small) end. If you need to press onto tube at both ends, choose the straight reducer instead.

Works with

• Copper M-Press Straight Reducer
• Copper M-Press Equal Tee
• MaxHeatUFH M-Profile Press Jaws
• Copper M-Press Fittings

Questions

Do I press the spigot end?
Yes. You press the fitting it sits in, using the jaw for that size, and press the small end onto tube.

Can I buy single fittings?
No. Our supplier does not split packs, so we sell full bags and boxes only.

Order by 12pm, Monday to Friday, for next working day UK delivery.

Product codes: MHF9-SFR22x15, MHF9-SFR28x15, MHF9-SFR28x22, MHF9-SFR35x22, MHF9-SFR35x28, MHF9-SFR42x22, MHF9-SFR42x28, MHF9-SFR42x35, MHF9-SFR54x22, MHF9-SFR54x28, MHF9-SFR54x35, MHF9-SFR54x42
