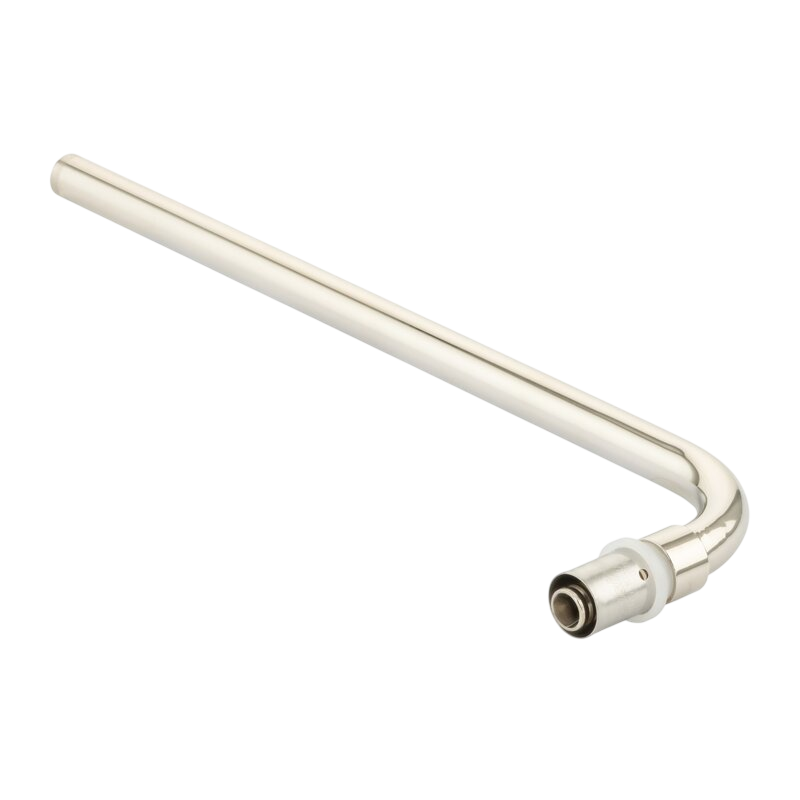

MLCP Press Radiator Elbow 16mm x 15mm with Pipe
Product details
This radiator elbow is a 16mm U-profile MLCP press elbow with a 15mm radiator pipe already fitted. It lets a 16mm multilayer circuit come up through the floor or out of the wall and go straight into a 15mm radiator valve. Choose chrome-plated pipe for a neat finish, or plain copper to paint or solder.
Why installers use it
- Fewer joints at the radiator: the elbow and the 15mm tail are one piece.
- Fits standard valves: connects to any 15mm compression radiator valve. Cut the pipe to length as needed.
- Press end: 16mm MLCP, U-profile, with a brass body, stainless press sleeve and EPDM O-rings.
- Rated: maximum working pressure 10 bar and maximum continuous temperature 80°C.
Versions
| Pipe finish | Pipe length | Code |
|---|---|---|
| Chrome | 300mm | MHF5-L1216x15S |
| Chrome | 150mm | MHF5-L1216x15S-150 |
| Plain copper | 300mm | MHF5-L1216x15CU-300 |
Sold individually: our supplier packs these singly.
Works with
Questions
Can I buy just one?
Yes. Unlike most of our MLCP fittings, these are sold singly.
Which pipe length should I pick?
150mm suits a valve close to the floor or wall. 300mm gives you more to cut down where the valve sits higher.
Order by 12pm, Monday to Friday, for next working day UK delivery.
Product codes: MHF5-L1216x15S, MHF5-L1216x15S-150, MHF5-L1216x15CU-300
Specifications
| Brand | MaxHeatUFH |
|---|---|
| Code | MHF5-L1216x15S |
| Type | MLCP Fitting |
| Version | Chrome, 300mm pipe, Chrome, 150mm pipe, Copper, 300mm pipe |
