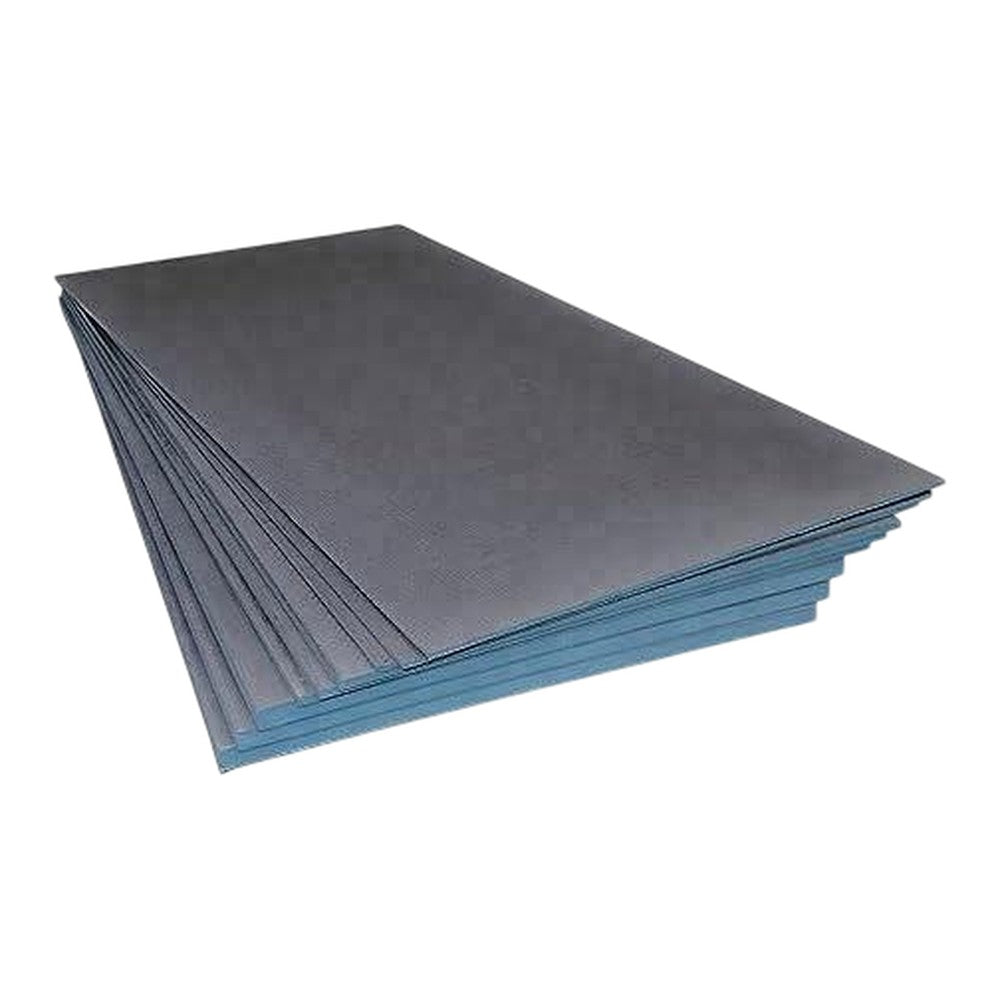

Cement-Coated XPS Tile Backer Board 1200 x 600mm
Product details
Cement-coated XPS tile backer board has a rigid extruded polystyrene core with a fibreglass-reinforced cement coating on both faces, ready to tile onto. It insulates under electric and wet underfloor heating, levels and waterproofs floors and walls, and is far lighter than solid cement board. Each board is 1200 x 600mm.
Why installers use it
- Insulates under UFH: the XPS core stops heat going down into the subfloor.
- Tile direct: the cement coating on both faces is ready for tiles.
- Light and easy to cut: far lighter than solid cement board, and cuts with a knife.
- Floors and walls: levels and waterproofs both.
Sizes
| Thickness | Board | Code |
|---|---|---|
| 6mm | 1200 x 600mm | MH-TBB-06 |
| 10mm | 1200 x 600mm | MH-TBB-10 |
| 20mm | 1200 x 600mm | MH-TBB-20 |
Fixing on floors
Bond the boards with flexible tile adhesive and fix them with insulation board washers. Each board covers 0.72m².
Works with
- 6mm Cementitious Tile Backer Board
- Electric Underfloor Heating Mat 150W/m²
- Overlay Panel Washers
- Insulation boards
Questions
Can I use it with wet underfloor heating?
Yes. It insulates under both electric and wet underfloor heating.
How do I cut it?
With a knife. The XPS core is much easier to cut than solid cement board.
Order by 12pm, Monday to Friday, for next working day UK delivery.
Product codes: MH-TBB-06, MH-TBB-10, MH-TBB-20
Specifications
| Brand | MaxHeatUFH |
|---|---|
| Code | MH-TBB-06 |
| Type | Tile Backer Board |
| Thickness | 6mm, 10mm, 20mm |
Delivery & returns
Next working day delivery on UK mainland orders placed by 12pm, Monday to Friday. Delivery is calculated at checkout. See our delivery and shipping policy and returns policy.
Need help choosing?
Try our MaxHeatUFH ProLoop to design and price your floor, or email sales@maxheatufh.com with your floor plan.
