A full renovation of a London property, with underfloor heating on every floor and an air source heat pump as the heat source. At 240m², this was a large system, so deliveries were phased to match the build: ground floor first, then the first and second floors two weeks later.
The system

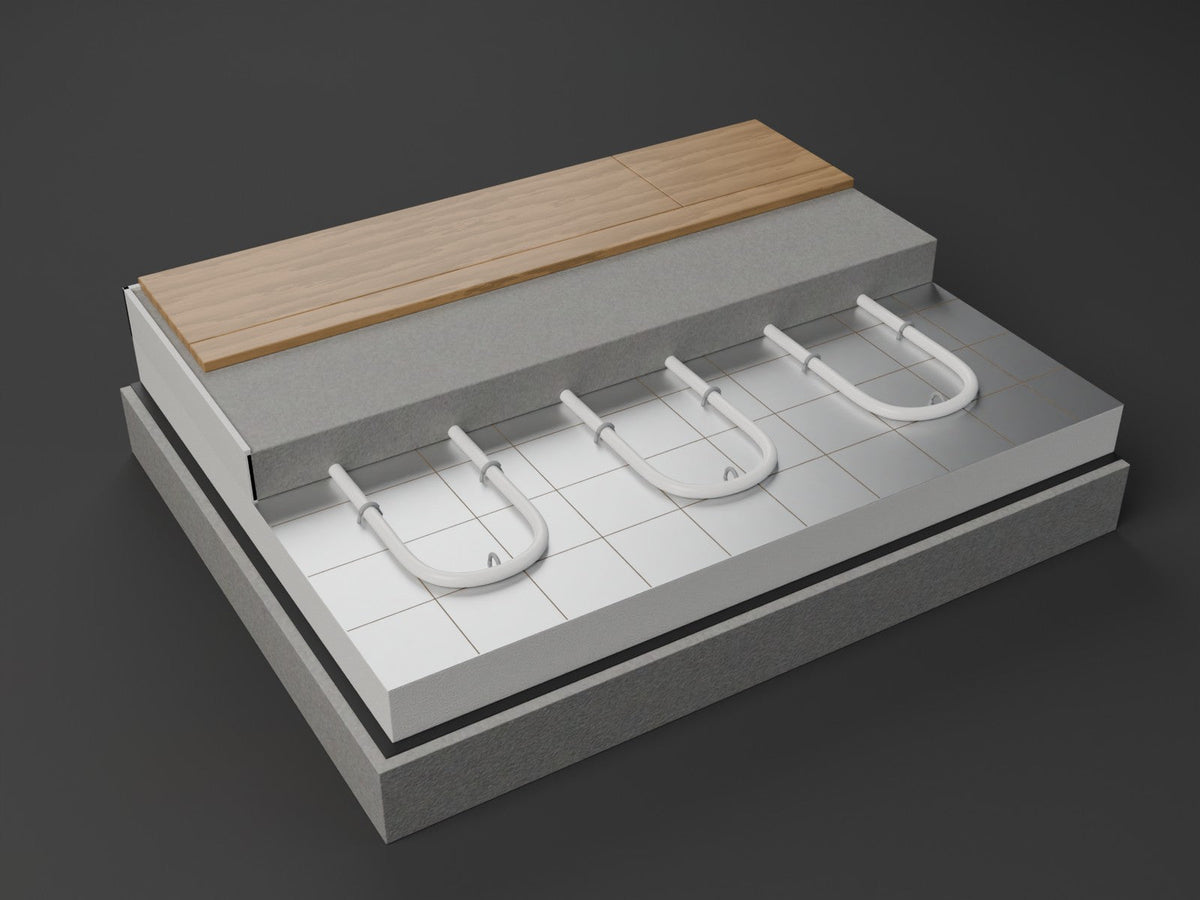

- Ground floor: Traditional pipe-in-screed, pipe clipped to high-performance insulation
- First and second floors: Overlay boards
- Pipe: 16mm PEX-EVOH pipe
- Pipe centres: 150mm
- Heat source: Air source heat pump
- Area: About 240m²
Phased supply on a renovation
On a London renovation, storage space on site is tight and floors are ready at different times. Splitting the delivery by floor meant the ground floor screed system arrived for the first fix, and the overlay boards arrived when the upper floors were ready.
Read more: underfloor heating with a heat pump and retrofit underfloor heating.
Planning something similar?
Upload your floor plan to MaxHeatUFH ProLoop for a free Quick Design and a priced kit in about three minutes. We supply UK-wide, and can arrange installation through our approved installers.
More about underfloor heating in London.
