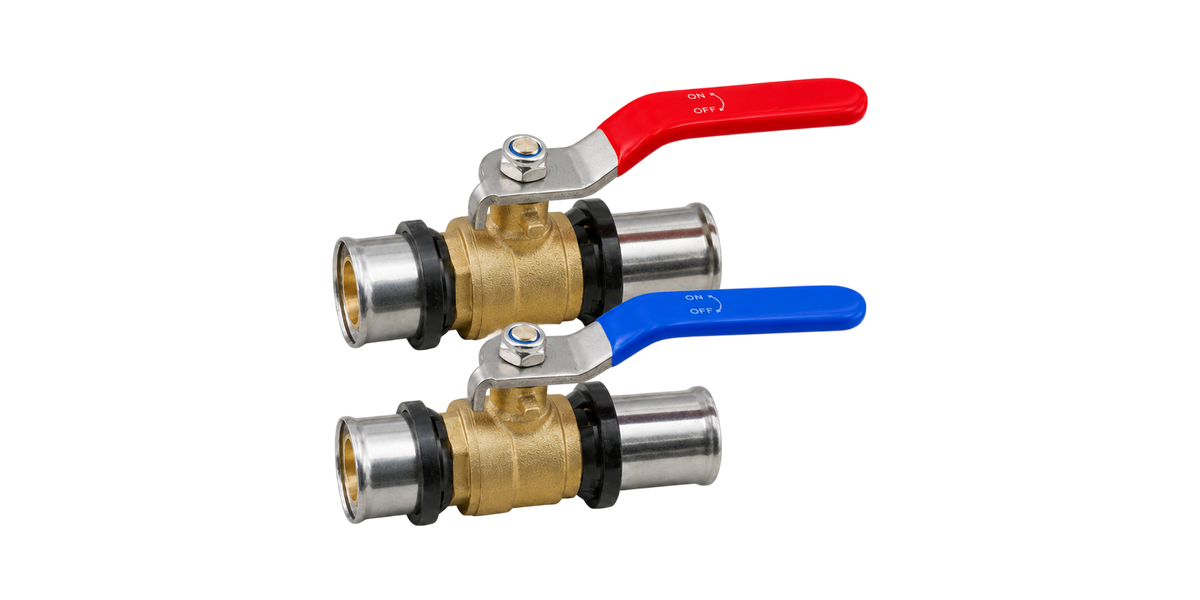

MLCP Press Fit Lever Ball Valve
Product details
An MLCP press fit lever ball valve is a full-bore brass isolating valve with press ends on both sides for multilayer pipe (MLCP or PEX-AL-PEX). Use it to isolate underfloor heating circuits, manifold flow and return, heating zones and water services. Choose a red lever for flow or hot, or blue for return or cold.
Why installers use it
- Full bore: no restriction to flow when it's open.
- Quarter turn: lever in line with the pipe means open.
- Colour-coded: red or blue grips make flow and return easy to tell apart.
- Specification: brass body, chrome-plated brass ball, PTFE seats, steel lever. U-profile press ends with stainless sleeves and EPDM O-rings. Maximum 10 bar (limited by the MLCP press joint) and 80°C continuous.
Pack sizes (each colour)
| Size | Bag | Box |
|---|---|---|
| 16mm x 16mm | 4 | 8 |
| 20mm x 20mm | 4 | 8 |
| 25mm x 25mm | 3 | 6 |
| 32mm x 32mm | – | 3 |
Pack sizes are the same for red and blue levers.
Sold in full bags or boxes only, in the supplier's pack quantities. Choose a bag or a box, then how many packs you need. Packs are not split.
How to fit it
Cut the pipe square. Calibrate and bevel the bore with a Pipe Reaming Tool or Pipe Chamfering Tool. Push the pipe fully home until it shows in the inspection window, then press with the U-profile jaw that matches the pipe size.
Works with
Questions
Which colour should I use?
Red for flow or hot, blue for return or cold.
Is the 32mm valve available in a bag?
No. The 32mm valve comes in boxes of 3.
Order by 12pm, Monday to Friday, for next working day UK delivery.
Product codes: MHF5-LBV1216x1216R-BAG4, MHF5-LBV1216x1216R-BOX8, MHF5-LBV1216x1216B-BAG4, MHF5-LBV1216x1216B-BOX8, MHF5-LBV1620x1620R-BAG4, MHF5-LBV1620x1620R-BOX8, MHF5-LBV1620x1620B-BAG4, MHF5-LBV1620x1620B-BOX8, MHF5-LBV2025x2025R-BAG3, MHF5-LBV2025x2025R-BOX6, MHF5-LBV2025x2025B-BAG3, MHF5-LBV2025x2025B-BOX6, MHF5-LBV2632x2632R-BOX3, MHF5-LBV2632x2632B-BOX3
Specifications
| Brand | MaxHeatUFH |
|---|---|
| Code | MHF5-LBV1216x1216R-BAG4 |
| Type | MLCP Fitting |
| Size | 16mm x 16mm, 20mm x 20mm, 25mm x 25mm, 32mm x 32mm |
| Handle colour | Red, Blue |
| Pack | Bag, Box |
