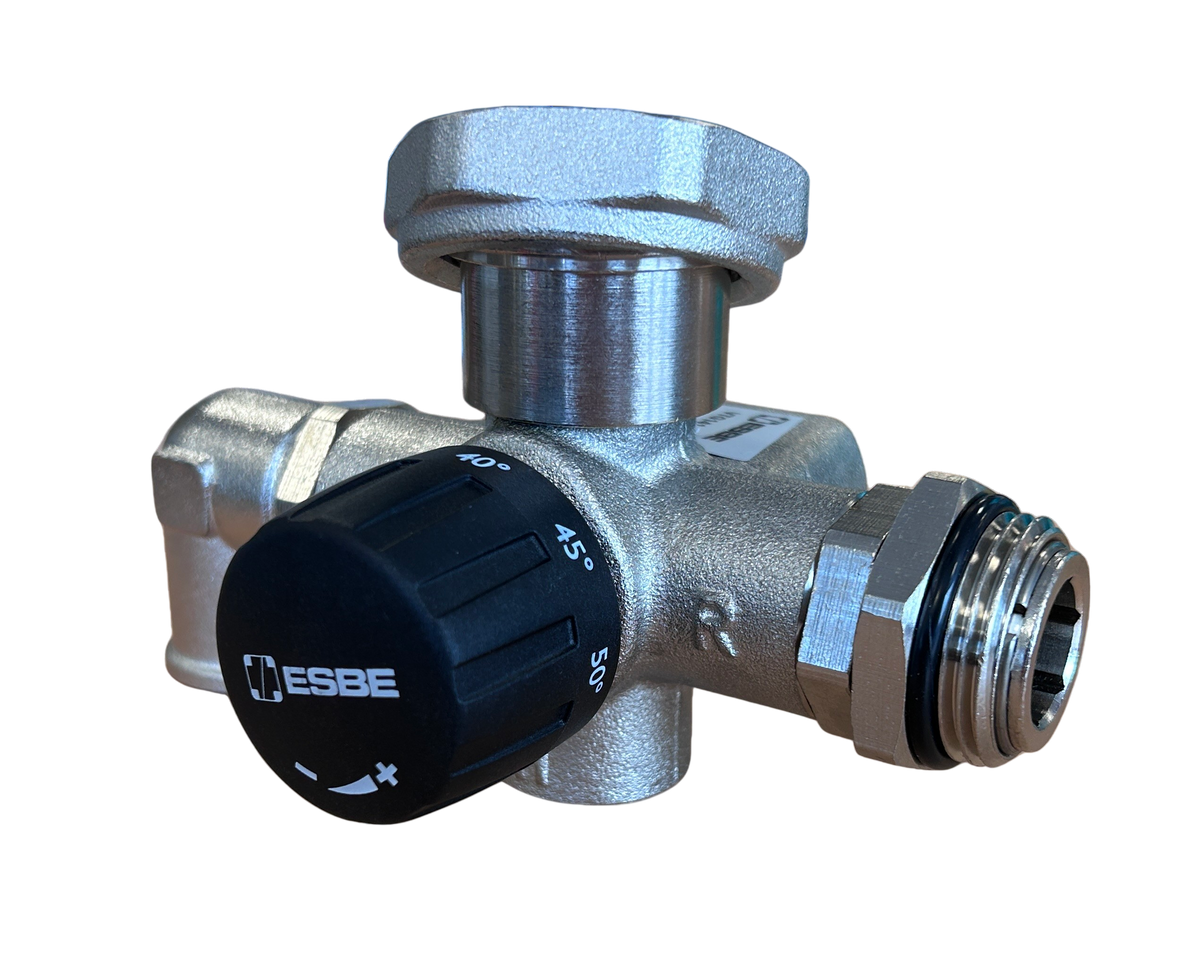

ESBE Single Room UFH Mixing Pump Pack (Valve Only, No Pump)
Product details
The valve-only version of our ESBE single room UFH mixing pump pack. You get the Swedish-made ESBE thermostatic valve with built-in bypass, the wall back plate, primary isolation valves and a pre-wired pump terminal box, but no pump. Fit your own 130mm, 1½in-union circulator, or reuse a good one from site.
Why installers use it
- Pick your own pump: takes any 130mm pump with 1½in unions.
- ESBE valve: built-in bypass, 35–60°C mixed flow.
- Everything else fitted: back plate, isolation valves and terminal box.
- One room, no manifold: runs a single UFH circuit.
Specification
| Item | Detail |
|---|---|
| Mixing valve | ESBE thermostatic, built-in bypass |
| Mixed flow temperature | 35–60°C |
| Circuits | 1 (single room) |
| Mounting | Own wall back plate |
| Max system pressure | 10 bar |
| Pump | Not included (fit 130mm, 1½in unions) |
Works with
- Grundfos UPM3 Flex 25-70 Circulation Pump
- Bastion A-Rated UFH Circulating Pump
- Wilo A-Rated UFH Circulating Pump 6m
- UFH pipe
Questions
Which pump should I fit?
Any 130mm circulator with 1½in unions. The Bastion 6m suits most single rooms, the 7.5m suits longer loops.
Is it the same valve as the ESBE pump packs?
Yes. It's the same ESBE pack, just supplied without the pump.
Order by 12pm, Monday to Friday, for next working day UK delivery.
Product codes: MH-SRE-VO
Specifications
| Brand | ESBE |
|---|---|
| Code | MH-SRE-VO |
| Type | Pump & Controls |
Delivery & returns
Next working day delivery on UK mainland orders placed by 12pm, Monday to Friday. Delivery is calculated at checkout. See our delivery and shipping policy and returns policy.
Need help choosing?
Try our MaxHeatUFH ProLoop to design and price your floor, or email sales@maxheatufh.com with your floor plan.
