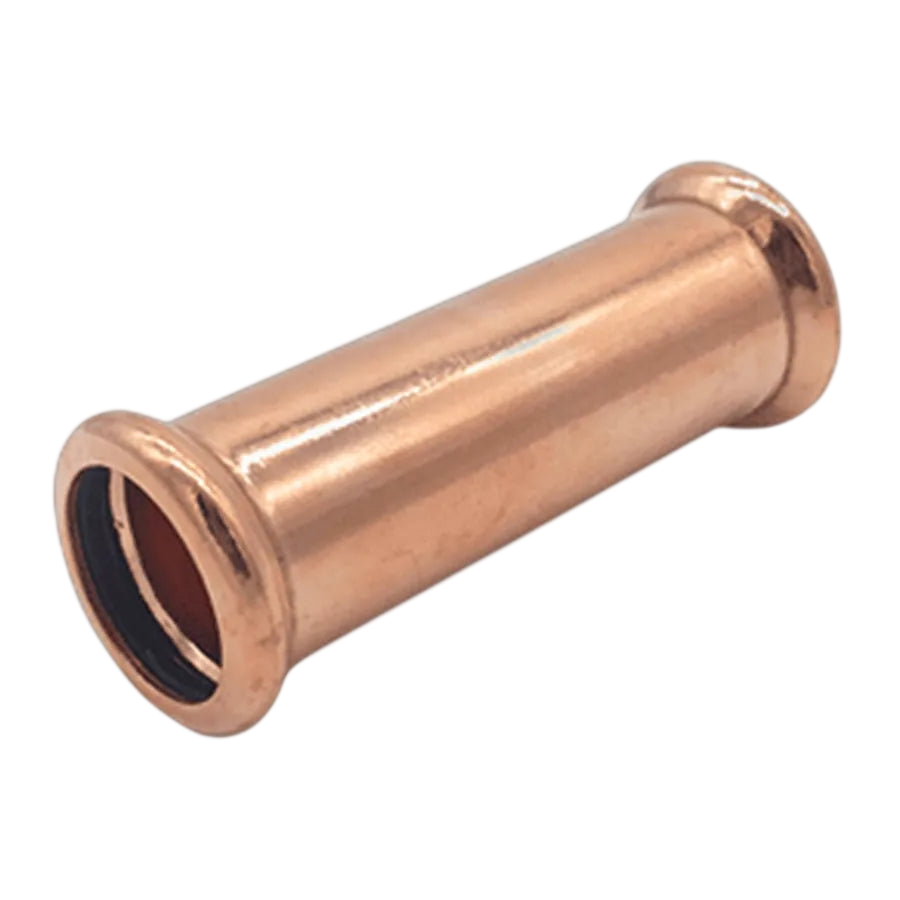

Copper M-Press Equal Sleeve Coupling
Product details
A copper M-press sleeve coupling is an equal coupling for joining copper tube of the same size. It comes in six sizes from 15mm to 54mm and is pressed with M-profile jaws, so the joint is made cold, without a torch.
Why installers use it
- Cold pressed joint: no flame or solder, just an M-profile press tool and the right jaw.
- Full size range: 15, 22, 28, 35, 42 and 54mm.
- Different pack counts: box quantities differ from our straight coupling, so check the table before you order.
- Full packs only: sold by the bag or box. Our supplier does not split packs.
Pack sizes
| Size | Bag | Box |
|---|---|---|
| 15mm | 10 | 100 |
| 22mm | 10 | 50 |
| 28mm | 5 | 40 |
| 35mm | 5 | 25 |
| 42mm | 2 | 12 |
| 54mm | 2 | 8 |
Works with
- MaxHeatUFH M-Profile Press Jaws for 15 to 28mm, or M-Profile Angled Press Jaws for the High Power tool
- Copper M-Press Equal Straight Coupling
- Copper M-Press Fittings
Questions
Straight coupling or sleeve coupling?
Both join tube of the same size in line. If you are not sure which suits your job, contact us before you order.
Is it sold singly?
No. It comes in full bags or boxes only, as our supplier does not split packs.
Order by 12pm, Monday to Friday, for next working day UK delivery.
Product codes: MHF9-SLC15x15, MHF9-SLC22x22, MHF9-SLC28x28, MHF9-SLC35x35, MHF9-SLC42x42, MHF9-SLC54x54
Specifications
| Brand | MaxHeatUFH |
|---|---|
| Code | MHF9-SLC15x15-BAG10 |
| Type | Copper M-Press Fitting |
| Size | 15mm, 22mm, 28mm, 35mm, 42mm, 54mm |
| Pack | Bag, Box |
