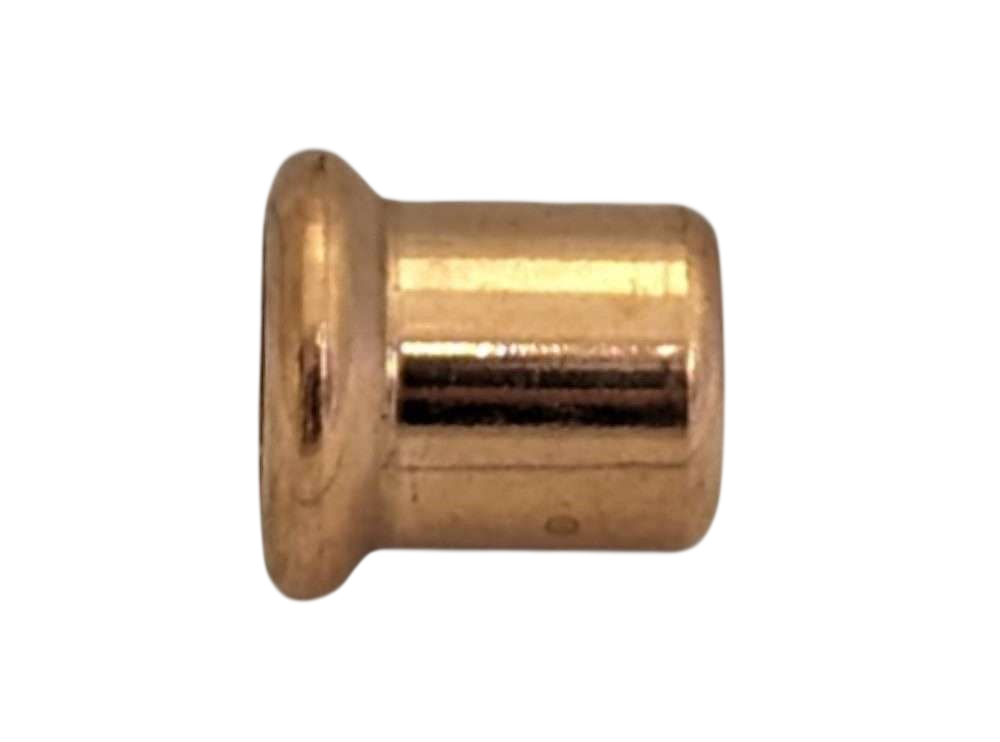

Copper M-Press End Cap
Product details
A copper M-press end cap seals the end of a copper tube. Use it to cap off a dead leg, blank a spur for later, or close a run for a pressure test. It presses on with an M-profile jaw in sizes from 15mm to 54mm.
Why installers use it
- Quick blanking: one press and the tube is sealed.
- Every size: 15, 22, 28, 35, 42 and 54mm.
- Bigger bags: 15mm comes in bags of 20 and boxes of 300.
- Full packs: bag or box. Our supplier does not split packs.
Pack sizes
| Size | Bag | Box |
|---|---|---|
| 15mm | 20 | 300 |
| 22mm | 10 | 180 |
| 28mm | 10 | 120 |
| 35mm | 5 | 60 |
| 42mm | 5 | 30 |
| 54mm | 5 | 20 |
Works with
- Copper M-Press Equal Tee
- Copper M-Press Lever Ball Valve
- MaxHeatUFH M-Profile Press Jaws and M-Profile Angled Press Jaws
- Copper M-Press Fittings
Questions
Which press tool do I need?
Any tool that takes M-profile jaws in the size you are pressing. With MaxHeatUFH jaws, 15, 22 and 28mm fit both the Electric Hydraulic Press Tool (MH-EHCS) and the High Power tool (MH-HPEHCS). 35, 42 and 54mm need the High Power tool.
Can I buy single fittings?
No. Our supplier does not split packs, so we sell full bags and boxes only.
Order by 12pm, Monday to Friday, for next working day UK delivery.
Product codes: MHF9-D15, MHF9-D22, MHF9-D28, MHF9-D35, MHF9-D42, MHF9-D54
Specifications
| Brand | MaxHeatUFH |
|---|---|
| Code | MHF9-D15-BAG20 |
| Type | Copper M-Press Fitting |
| Size | 15mm, 22mm, 28mm, 35mm, 42mm, 54mm |
| Pack | Bag, Box |
Delivery & returns
Next working day delivery on UK mainland orders placed by 12pm, Monday to Friday. Delivery is calculated at checkout. See our delivery and shipping policy and returns policy.
Need help choosing?
Try our MaxHeatUFH ProLoop to design and price your floor, or email sales@maxheatufh.com with your floor plan.
