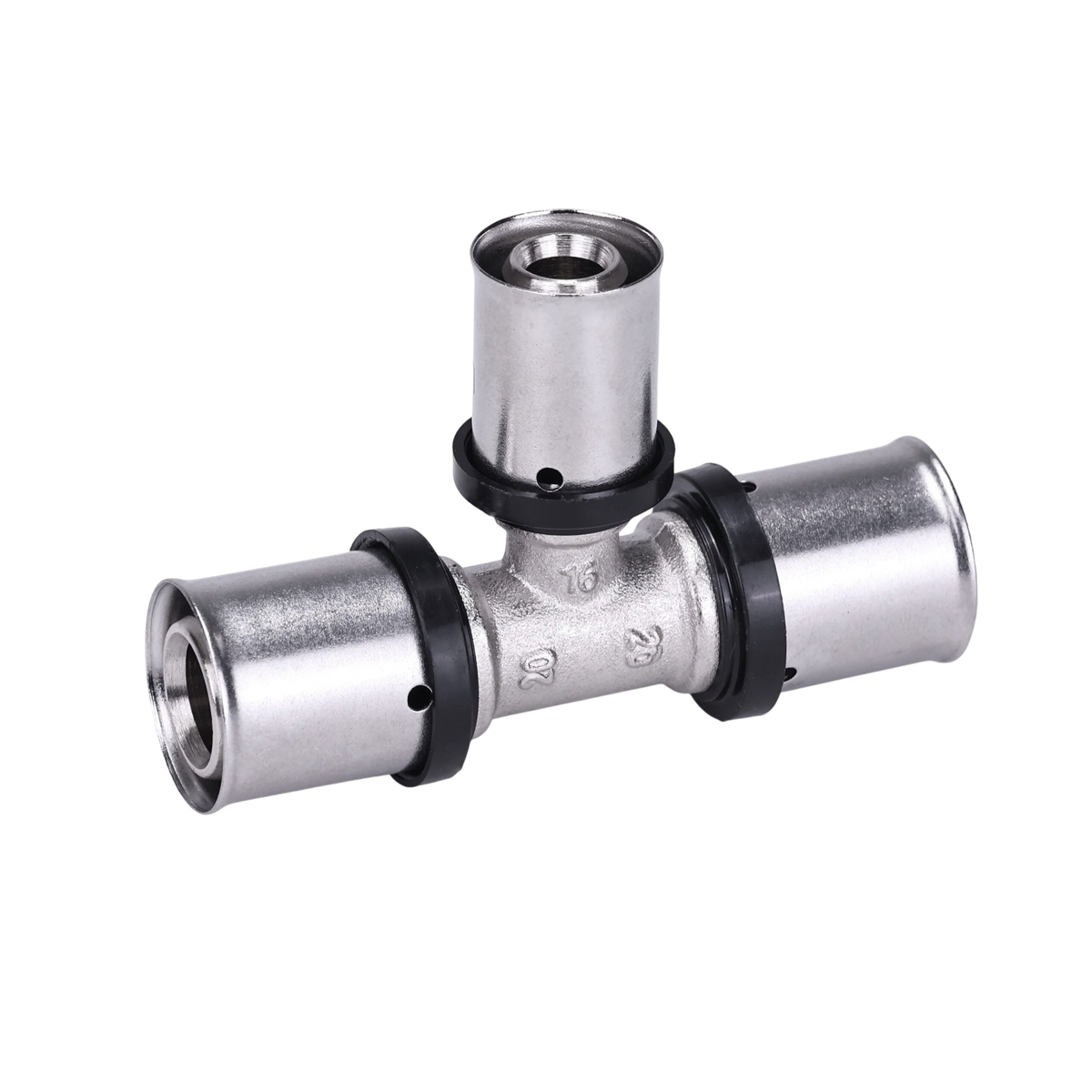

MLCP Press Fit Unequal Tee
Product details
An MLCP press fit unequal tee branches multilayer pipe (MLCP or PEX-AL-PEX) where the run and branch are different sizes. It's the fitting for taking 16mm circuits off a 20mm, 25mm or 32mm main on heating and water systems, without adding separate reducers.
Why installers use it
- 13 size combinations: from 16 x 20 x 16mm up to 32 x 25 x 32mm.
- Reduce and branch in one: fewer joints than a tee plus reducers.
- Specification: brass body, stainless steel press sleeve with an inspection window and insulating ring, and factory-fitted EPDM O-rings.
- Rated for heating and water: maximum working pressure 10 bar and maximum continuous temperature 80°C (95°C peak). Suitable for heating, underfloor heating and hot and cold water.
Pack sizes
| Size | Bag | Box |
|---|---|---|
| 16mm x 20mm x 16mm | 4 | 12 |
| 20mm x 16mm x 16mm | 4 | 12 |
| 20mm x 16mm x 20mm | 4 | 12 |
| 20mm x 20mm x 16mm | 4 | 12 |
| 25mm x 16mm x 16mm | 2 | 6 |
| 25mm x 16mm x 25mm | 2 | 6 |
| 25mm x 20mm x 20mm | 2 | 6 |
| 25mm x 20mm x 25mm | 2 | 6 |
| 25mm x 25mm x 16mm | 2 | 6 |
| 32mm x 16mm x 32mm | 2 | 6 |
| 32mm x 20mm x 32mm | – | 3 |
| 32mm x 25mm x 25mm | – | 3 |
| 32mm x 25mm x 32mm | – | 3 |
Sold in full bags or boxes only, in the supplier's pack quantities. Choose a bag or a box, then how many packs you need. Packs are not split.
Reading the sizes
Sizes are given run x branch x run, so end 1 x branch x end 2. A 25 x 16 x 25mm tee has 25mm on both run ends and a 16mm branch.
How to fit it
Cut the pipe square. Calibrate and bevel the bore with a Pipe Reaming Tool or Pipe Chamfering Tool. Push the pipe fully home until it shows in the inspection window, then press with the U-profile jaw that matches the pipe size.
Works with
- MLCP Press Fit Equal Tee
- MLCP Press Fit Reducing Straight Connector
- U-Profile Press Jaws
- MLCP Fittings
Questions
Which number is the branch?
The middle one. Sizes are run x branch x run.
Do all sizes come in bags?
No. The 32 x 20 x 32, 32 x 25 x 25 and 32 x 25 x 32mm tees come in boxes of 3 only.
Order by 12pm, Monday to Friday, for next working day UK delivery.
Product codes: MHF5-T1216x1620x1216-BAG4, MHF5-T1216x1620x1216-BOX12, MHF5-T1620x1216x1216-BAG4, MHF5-T1620x1216x1216-BOX12, MHF5-T1620x1216x1620-BAG4, MHF5-T1620x1216x1620-BOX12, MHF5-T1620x1620x1216-BAG4, MHF5-T1620x1620x1216-BOX12, MHF5-T2025x1216x1216-BAG2, MHF5-T2025x1216x1216-BOX6, MHF5-T2025x1216x2025-BAG2, MHF5-T2025x1216x2025-BOX6, MHF5-T2025x1620x1620-BAG2, MHF5-T2025x1620x1620-BOX6, MHF5-T2025x1620x2025-BAG2, MHF5-T2025x1620x2025-BOX6, MHF5-T2025x2025x1216-BAG2, MHF5-T2025x2025x1216-BOX6, MHF5-T2632x1216x2632-BAG2, MHF5-T2632x1216x2632-BOX6, MHF5-T2632x1620x2632-BOX3, MHF5-T2632x2025x2025-BOX3, MHF5-T2632x2025x2632-BOX3
Specifications
| Brand | MaxHeatUFH |
|---|---|
| Code | MHF5-T1216x1620x1216-BAG4 |
| Type | MLCP Fitting |
| Size | 16mm x 20mm x 16mm, 20mm x 16mm x 16mm, 20mm x 16mm x 20mm, 20mm x 20mm x 16mm, 25mm x 16mm x 16mm, 25mm x 16mm x 25mm, 25mm x 20mm x 20mm, 25mm x 20mm x 25mm, 25mm x 25mm x 16mm, 32mm x 16mm x 32mm, 32mm x 20mm x 32mm, 32mm x 25mm x 25mm, 32mm x 25mm x 32mm |
| Pack | Bag, Box |
