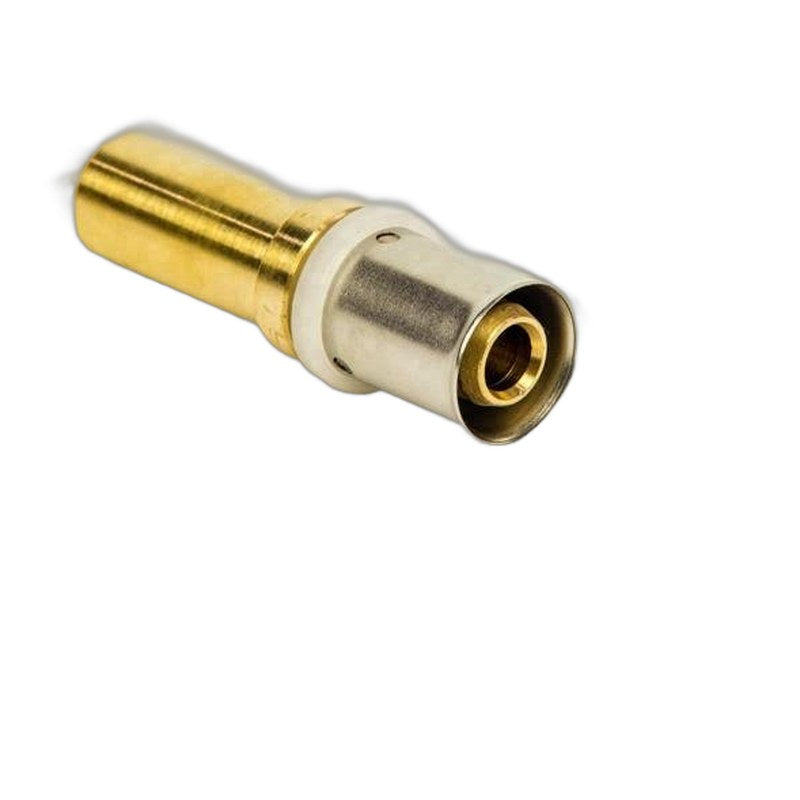

MLCP Press Fit to Copper Brass Tail
Product details
An MLCP press fit to copper adaptor has a press end for multilayer pipe (MLCP or PEX-AL-PEX) and a plain, copper-sized brass tail. The tail goes into a 15, 22 or 28mm compression, soldered or copper press fitting, so you can join a multilayer run to existing copper pipework.
Why installers use it
- Multilayer to copper: the simple way to tie new MLCP into a copper system.
- Six sizes: 16mm to 15mm through to 32mm to 28mm.
- Specification: brass body, stainless steel press sleeve with an inspection window and insulating ring, and factory-fitted EPDM O-rings.
- Rated for heating and water: maximum working pressure 10 bar and maximum continuous temperature 80°C (95°C peak). Suitable for heating, underfloor heating and hot and cold water.
Pack sizes
| Size | Bag | Box |
|---|---|---|
| 16mm x 15mm | 9 | 45 |
| 20mm x 15mm | 7 | 28 |
| 20mm x 22mm | 6 | 18 |
| 25mm x 22mm | 6 | 12 |
| 25mm x 28mm | 5 | 10 |
| 32mm x 28mm | 2 | 8 |
Sold in full bags or boxes only, in the supplier's pack quantities. Choose a bag or a box, then how many packs you need. Packs are not split.
How to fit it
Cut the pipe square. Calibrate and bevel the bore with a Pipe Reaming Tool or Pipe Chamfering Tool. Push the pipe fully home until it shows in the inspection window, then press with the U-profile jaw that matches the pipe size.
Works with
- Copper M-Press Fittings for the copper side
- U-Profile Press Jaws for the MLCP side
- PERT-AL-PERT Multilayer Pipe
- MLCP Fittings
Questions
What does the tail fit into?
A 15, 22 or 28mm copper fitting: compression, soldered or copper press.
Which size do I need?
The first size is the multilayer pipe and the second is the copper. 20mm x 22mm joins 20mm MLCP to 22mm copper.
Order by 12pm, Monday to Friday, for next working day UK delivery.
Product codes: MHF5-S1216x15Cu-BAG9, MHF5-S1216x15Cu-BOX45, MHF5-S1620x15Cu-BAG7, MHF5-S1620x15Cu-BOX28, MHF5-S1620x22Cu-BAG6, MHF5-S1620x22Cu-BOX18, MHF5-S2025x22Cu-BAG6, MHF5-S2025x22Cu-BOX12, MHF5-S2025x28Cu-BAG5, MHF5-S2025x28Cu-BOX10, MHF5-S2632x28Cu-BAG2, MHF5-S2632x28Cu-BOX8
Specifications
| Brand | MaxHeatUFH |
|---|---|
| Code | MHF5-S1216x15Cu-BAG9 |
| Type | MLCP Fitting |
| Size | 16mm x 15mm, 20mm x 15mm, 20mm x 22mm, 25mm x 22mm, 25mm x 28mm, 32mm x 28mm |
| Pack | Bag, Box |
