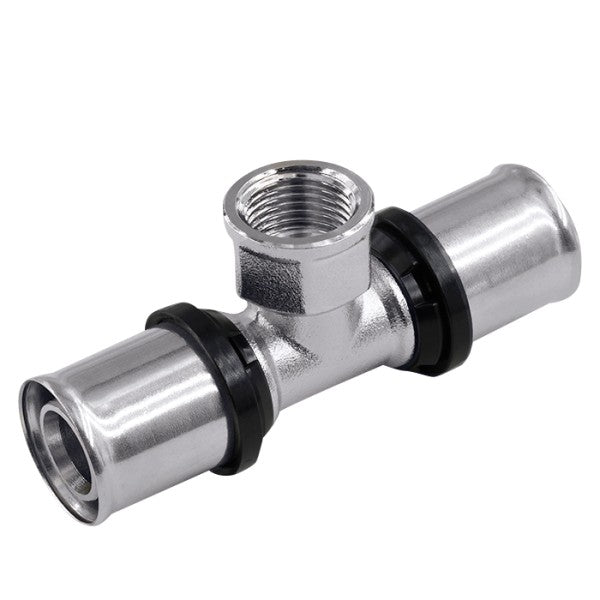

MLCP Press Fit Female Tee
Product details
An MLCP press fit female tee has press ends on the run and a 1/2" female BSP branch. Use it to take a threaded tapping off a multilayer pipe run (MLCP or PEX-AL-PEX), such as a drain cock, air vent, gauge, sensor pocket or tap connector.
Why installers use it
- Threaded branch: a 1/2" female BSP tapping straight off the run.
- Three run sizes: 20mm, 25mm and 32mm.
- Specification: brass body, stainless steel press sleeve with an inspection window and insulating ring, and factory-fitted EPDM O-rings.
- Rated for heating and water: maximum working pressure 10 bar and maximum continuous temperature 80°C (95°C peak). Suitable for heating, underfloor heating and hot and cold water.
Pack sizes
| Size | Bag | Box |
|---|---|---|
| 20mm x 1/2" x 20mm | 2 | 6 |
| 25mm x 1/2" x 25mm | 2 | 6 |
| 32mm x 1/2" x 32mm | 2 | 6 |
Sold in full bags or boxes only, in the supplier's pack quantities. Choose a bag or a box, then how many packs you need. Packs are not split.
Sizes are given run x branch x run.
How to fit it
Cut the pipe square. Calibrate and bevel the bore with a Pipe Reaming Tool or Pipe Chamfering Tool. Push the pipe fully home until it shows in the inspection window, then press with the U-profile jaw that matches the pipe size. Seal the BSP thread with PTFE tape or a thread sealing cord.
Works with
- Pressure and Temperature Gauge
- MLCP Press Fit Equal Tee for a pressed branch
- U-Profile Press Jaws
- MLCP Fittings
Questions
What can I fit to the branch?
Anything with a 1/2" male BSP thread, such as a drain cock, air vent, gauge or sensor pocket.
Is there a 16mm size?
No. This tee comes in 20, 25 and 32mm run sizes.
Order by 12pm, Monday to Friday, for next working day UK delivery.
Product codes: MHF5-T1620x12Fx1620-BAG2, MHF5-T1620x12Fx1620-BOX6, MHF5-T2025x12Fx2025-BAG2, MHF5-T2025x12Fx2025-BOX6, MHF5-T2632x12Fx2632-BAG2, MHF5-T2632x12Fx2632-BOX6
Specifications
| Brand | MaxHeatUFH |
|---|---|
| Code | MHF5-T1620x12Fx1620-BAG2 |
| Type | MLCP Fitting |
| Size | 20mm x 1/2" x 20mm, 25mm x 1/2" x 25mm, 32mm x 1/2" x 32mm |
| Pack | Bag, Box |
