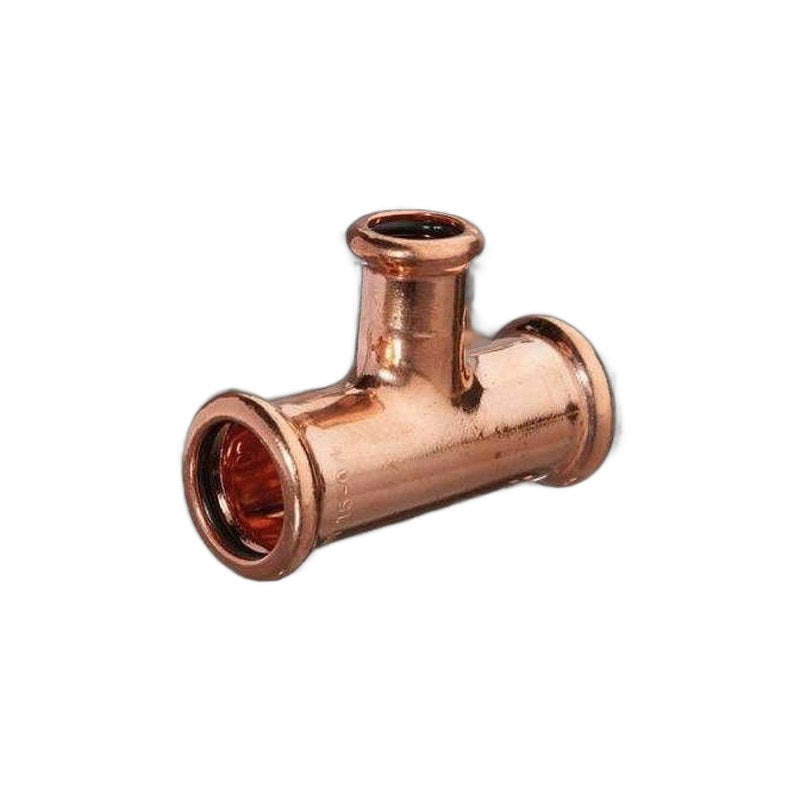

Copper M-Press Unequal Tee
Product details
A copper M-press unequal tee takes a branch off a run where one or more ends are a different size. It saves fitting a tee and a reducer, so the branch is shorter and has fewer joints. We stock 26 size combinations, from 15-22-15mm up to 54-42-54mm.
Why installers use it
- 26 combinations: reducing branches, enlarging branches and reducing runs.
- Fewer fittings: one tee instead of a tee plus reducers.
- Flame-free: press each end with the M-profile jaw for its size.
- Bag or box: every size comes in both. Packs are not split.
Pack sizes
| Size | Bag | Box |
|---|---|---|
| 15-22-15mm | 10 | 60 |
| 22-15-15mm | 10 | 50 |
| 22-15-22mm | 10 | 50 |
| 22-22-15mm | 10 | 40 |
| 22-28-22mm | 10 | 30 |
| 28-15-22mm | 5 | 30 |
| 28-15-28mm | 5 | 30 |
| 28-22-22mm | 5 | 30 |
| 28-22-28mm | 5 | 30 |
| 28-28-15mm | 5 | 25 |
| 28-28-22mm | 5 | 20 |
| 35-15-35mm | 5 | 20 |
| 35-22-22mm | 5 | 20 |
| 35-22-35mm | 5 | 15 |
| 35-28-35mm | 5 | 15 |
| 35-35-22mm | 5 | 15 |
| 35-35-28mm | 5 | 15 |
| 42-15-42mm | 2 | 12 |
| 42-22-42mm | 2 | 12 |
| 42-28-42mm | 2 | 12 |
| 42-35-35mm | 2 | 10 |
| 42-35-42mm | 2 | 10 |
| 54-22-54mm | 2 | 6 |
| 54-28-54mm | 2 | 6 |
| 54-35-54mm | 2 | 6 |
| 54-42-54mm | 2 | 6 |
Reading the size
Sizes read end, branch, end. So 22-15-22mm is a 22mm run with a 15mm branch, and 22-22-15mm is a 22mm inlet and branch with a 15mm outlet.
Works with
- Copper M-Press Equal Tee
- Copper M-Press Female Tee
- MaxHeatUFH M-Profile Press Jaws and M-Profile Angled Press Jaws
- Copper M-Press Fittings
Questions
Which press tool do I need?
Any tool that takes M-profile jaws in the size you are pressing. With MaxHeatUFH jaws, 15, 22 and 28mm fit both the Electric Hydraulic Press Tool (MH-EHCS) and the High Power tool (MH-HPEHCS). 35, 42 and 54mm need the High Power tool.
Can I buy single fittings?
No. Our supplier does not split packs, so we sell full bags and boxes only.
Order by 12pm, Monday to Friday, for next working day UK delivery.
Product codes: MHF9-T15x22x15 to MHF9-T54x42x54
Specifications
| Brand | MaxHeatUFH |
|---|---|
| Code | MHF9-T15x22x15-BAG10 |
| Type | Copper M-Press Fitting |
| Size | 15-22-15mm, 22-15-15mm, 22-15-22mm, 22-22-15mm, 22-28-22mm, 28-15-22mm, 28-15-28mm, 28-22-22mm, 28-22-28mm, 28-28-15mm, 28-28-22mm, 35-15-35mm, 35-22-22mm, 35-22-35mm, 35-28-35mm, 35-35-22mm, 35-35-28mm, 42-15-42mm, 42-22-42mm, 42-28-42mm, 42-35-35mm, 42-35-42mm, 54-22-54mm, 54-28-54mm, 54-35-54mm, 54-42-54mm |
| Pack | Bag, Box |
