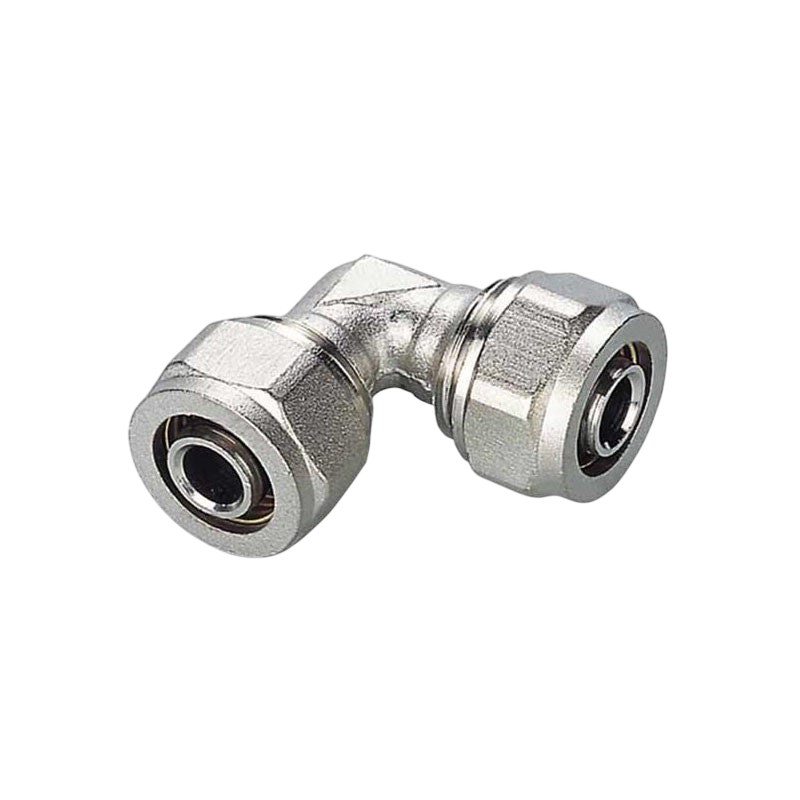

16mm MLCP Compression Elbow
Product details
A 16mm compression elbow turns 16 x 2.0mm multilayer pipe (PERT-AL-PERT or PEX-AL-PEX) through 90 degrees. It has a brass body with an insert, olive and nut on each end, so you make the joint with spanners and no press tool. That makes it ideal for repairs and awkward runs.
Why installers use it
- No press tool: useful where a press tool can't reach, or for a quick repair.
- Made for multilayer: the insert supports the pipe bore as the olive is tightened.
- Rated: maximum 10 bar and 95°C.
Specification
| Feature | Detail |
|---|---|
| Pipe | 16 x 2.0mm MLCP both ends |
| Type | 90° equal elbow, compression |
| Material | Brass |
| Rating | Max. 10 bar / 95°C |
Works with
Questions
Which pipe does it fit?
16mm multilayer pipe with a 2.0mm wall, PERT-AL-PERT or PEX-AL-PEX.
Is it sold singly?
Yes. It's sold as a single fitting.
Order by 12pm, Monday to Friday, for next working day UK delivery.
Product codes: MHF1-E1216x1216 C
Specifications
| Brand | MaxHeatUFH |
|---|---|
| Code | MHF1-E1216x1216 C |
| Type | Pipe Fitting |
